What information is needed before quotation?

For quotation, WOLIFT normally needs load weight, dimensions, material surface, lifting orientation, working cycle, pickup and release position, site space, power or air supply, and whether a crane, trolley or special frame is required.

What materials can Vacuum Tube Lifters for Boxes handle?

This product can be configured for cartons, boxes and packaged goods. Final feasibility depends on surface condition, weight, size, leakage, deformation and the required lifting path.

How should the correct model be selected?

Model selection should be based on the actual load weight, workpiece size, lifting height, stroke, operating frequency, safety requirements and site layout. WOLIFT engineers can recommend a suitable model after reviewing the application.

What air supply is required?

Pneumatic equipment should be connected to a stable compressed air supply. The required pressure, air consumption and pipeline arrangement should be confirmed according to the final configuration.

What safety features are available?

WOLIFT vacuum lifting equipment can be supplied with CE compliance and vacuum holding function. The detailed safety factor, alarm, vacuum circuit and control design should be confirmed according to product type and application risk.

Can WOLIFT export and support overseas projects?

Yes. WOLIFT supplies equipment for global export and can provide pre-sales selection support, installation guidance, operation documentation and spare parts support for overseas customers.

VACUUM TUBE LIFTERS

Vacuum Tube Lifters for Boxes

Name: Vacuum Tube Lifters for Boxes operation video
Uploaded: 2026-09-01
Description: WOLIFT box tube lifters handle cartons, wooden boxes, suitcases, and box-type products safely and effortlessly.

WOLIFT box tube lifters handle cartons, wooden boxes, suitcases, and box-type products safely and effortlessly.

Request a proposal Back to category

Box compatibility

What kinds of boxes can be lifted?

WOLIFT vacuum tube lifters can be configured for many box handling tasks. The final suction pad design depends on box weight, surface material, sealing quality and lifting frequency.

WOLIFT lifter picking up a sealed paper carton

Sealed cartons

Suitable for regular paper cartons used in packaging, warehousing and palletizing lines.

WOLIFT lifter handling a strapped corrugated box

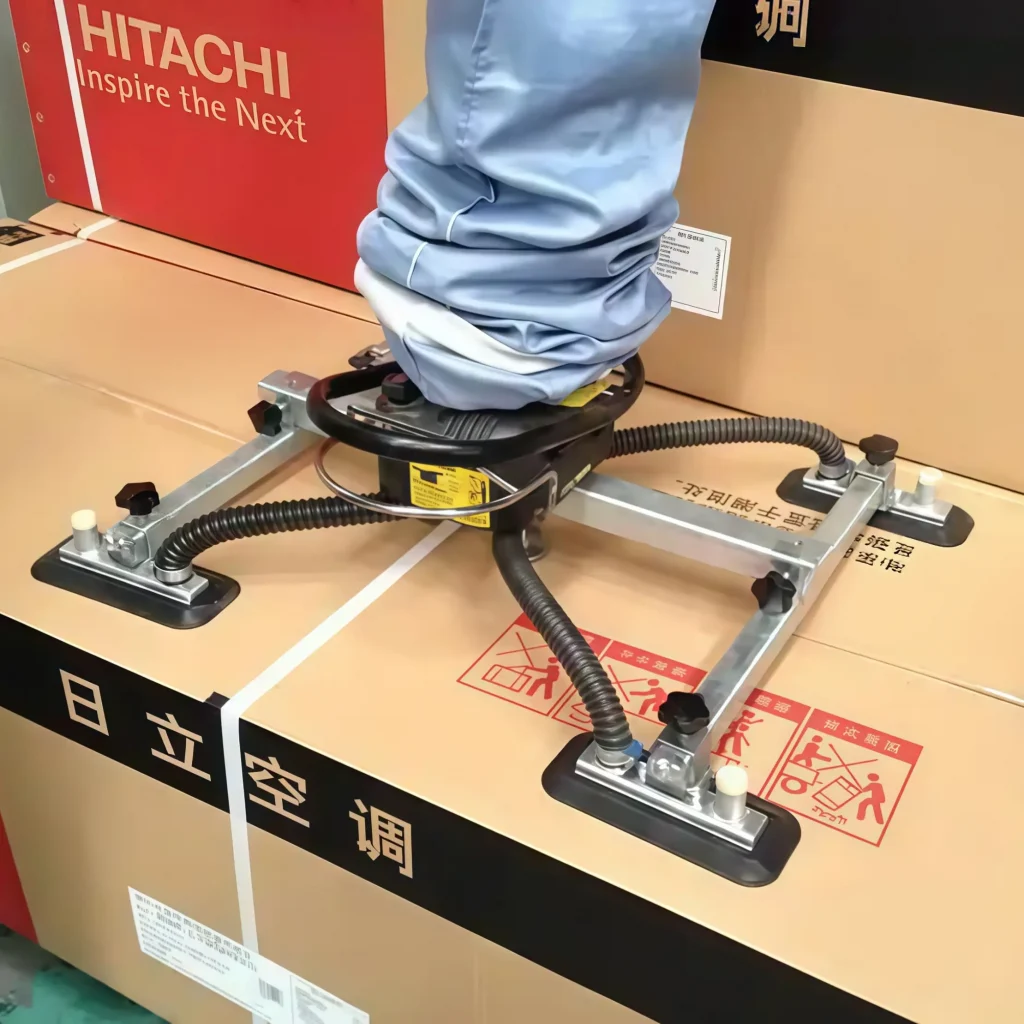

Strapped boxes

Can handle banded or strapped cartons when the suction area is stable and the box surface is not severely deformed.

WOLIFT lifter gripping a plastic crate with stable surface

Plastic crates

Works with many reusable boxes and crates after confirming surface flatness, edge structure and air leakage.

WOLIFT lifter with custom suction pad for irregular mixed-SKU packages

Irregular packages

For mixed SKUs or changing carton sizes, we can design suction pads and handles around the real workflow.

Selection note: Very porous, damaged, dusty, heavily wrinkled or soft-collapsing boxes should be tested before final configuration.

Equipment advantages

Designed for heavy, frequent and ergonomic box handling

The vacuum tube lifter combines suction, lifting and release in one hand-friendly control system. It reduces repeated bending and manual lifting while keeping box transfer fast and predictable.

250 kg Maximum load capacity available for heavy box and package handling.

Easy operation Operators can lift, lower and release the box through a simple control handle.

Less manual strain Helps reduce back, shoulder and arm fatigue in repetitive palletizing and transfer work.

Custom suction pad Pad size, sealing lip and contact layout can be adapted to your box surface.

Typical workflows

Where this box lifting solution is used

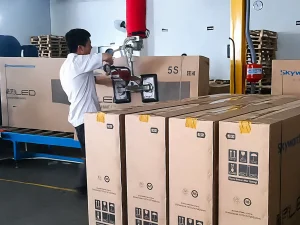

WOLIFT Tube Lifter for TV Carton Handling & Palletizing

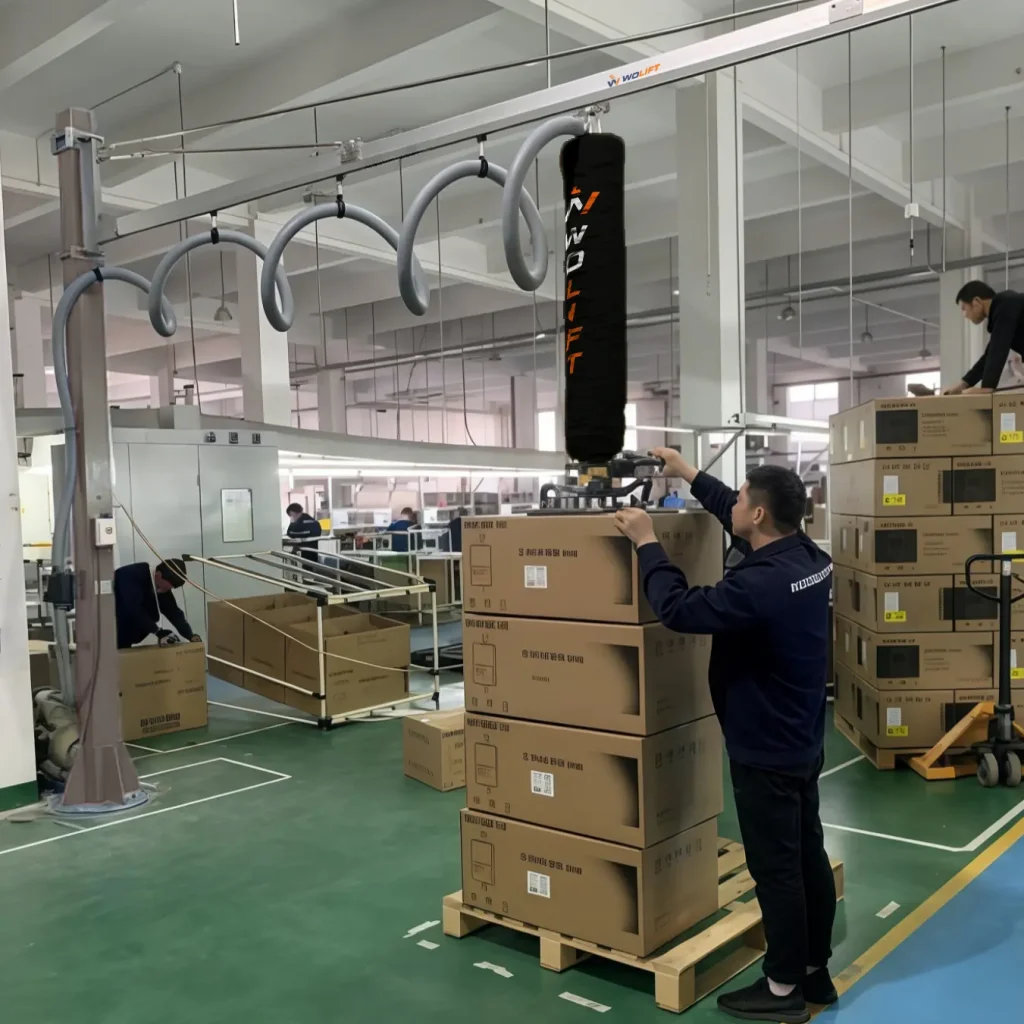

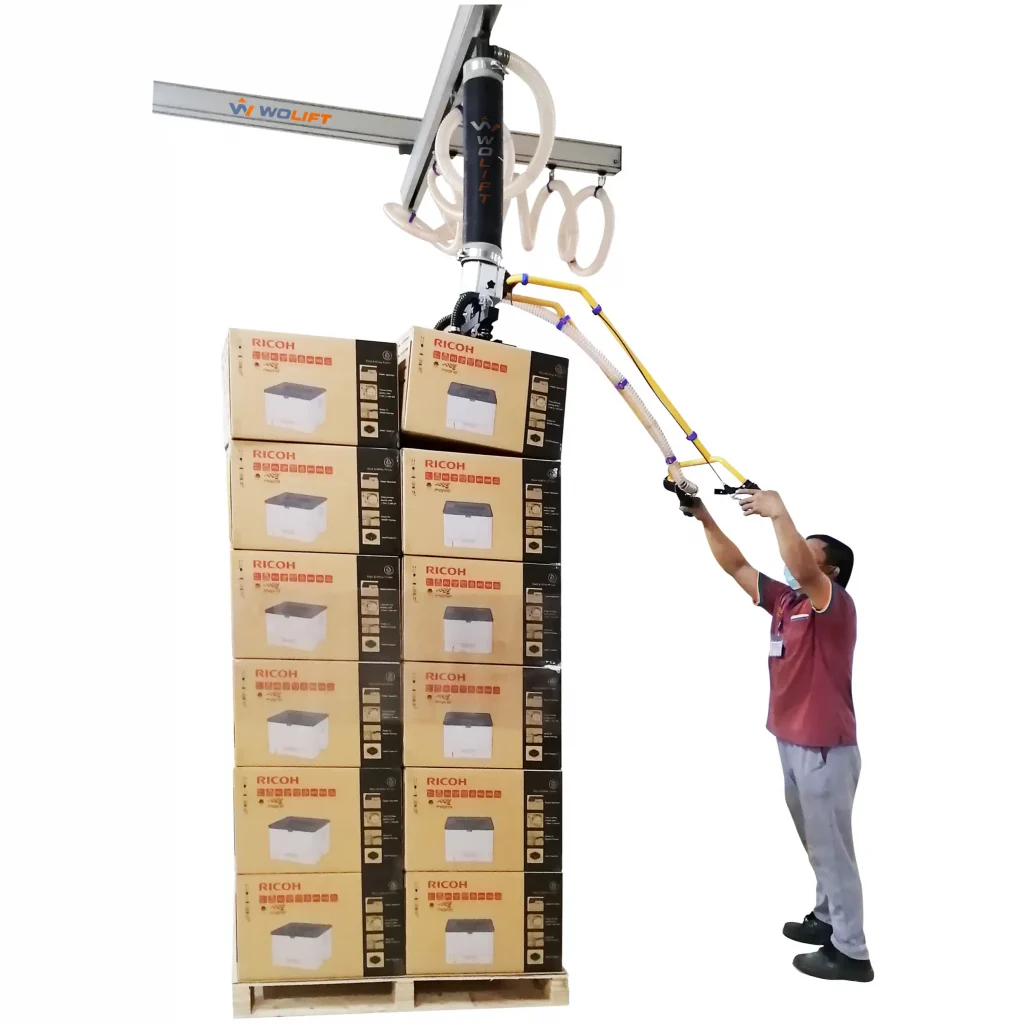

01Palletizing and depalletizing

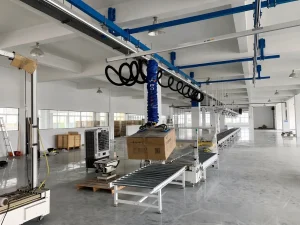

WOLIFT Tube Lifter for Conveyor-End Unloading

02Packaging line end handling

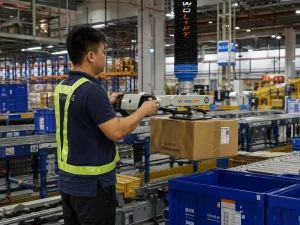

WOLIFT Tube Lifter for Warehouse Product Sorting

03Warehouse picking and transfer

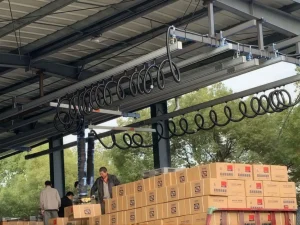

WOLIFT tube lifters are used for unloading goods from trucks

04Truck loading and unloading support

Supporting equipment

Matched with the right crane or mobile system

WOLIFT can combine the vacuum tube lifter with different support structures according to floor space, working radius, ceiling conditions and required mobility.

WOLIFT Tube Lifter with Column-Mounted Jib Crane

Pillar-mounted jib crane

Suitable for fixed workstations with a clear circular working range.

WOLIFT Tube Lifter with Wall-Mounted Crane

Wall-mounted jib crane

Useful when floor columns should be avoided and a strong wall or structure is available.

Mobile pillar jib crane

Flexible for changing work areas, temporary stations or workshops without fixed installation.

WOLIFT Tube Lifter with Overhead Bridge Track System

KBK light rail system

Recommended for longer transfer distances, multi-station layouts or linear production flows.

Operation video

Vacuum Tube Lifters for Fast Box Handling

See how WOLIFT vacuum tube lifters help operators lift, move, stack, and position cartons and boxes with less effort and better control. The system is designed for repetitive box handling in warehouses, logistics centers, packaging lines, and end-of-line palletizing applications.

Models

Vacuum tube lifter model reference

Model selection is related to load weight, box air permeability, lifting height and working frequency. Final configuration should be confirmed with WOLIFT engineers.

View model table

Model	WO-QGDS-100	WO-QGDS-120	WO-QGDS-140	WO-QGDS-160	WO-QGDS-180	WO-QGDS-200	WO-QGDS-230	WO-QGDS-250	WO-QGDS-300
Maximum load capacity KG	30	45	65	85	105	130	175	205	250
Lifting tube dia mm	100	120	140	160	180	200	230	250	300
Mounting height H mm	2500/4000	2500/4000	2500/4000	2500/4000	2500/4000	2500/4000	2500/4000	2500/4000	2500/4000
Max. stroke T mm	1750/2750	1750/2750	1750/2750	1680/2690	1680/2690	1680/2690	1680/2690	1680/2690	1680/2690
Lifting speed m/min	60	60	60	50	45	35	35	35	35

FAQ

Common questions about box vacuum tube lifters

Can the lifter handle different carton sizes?

Yes. The suction pad and handle can be configured for a range of carton sizes. For very mixed products, WOLIFT can help evaluate whether one pad or multiple pads are better.

What is the maximum lifting capacity?

The model range can support up to 250 kg. Actual selection depends on box surface condition, air permeability, safety factor and working frequency.

Can one operator use it?

Yes. The system is designed for simple operator control, reducing manual lifting and repeated bending during palletizing or transfer work.

What if the box leaks air?

Some air leakage can be handled through pump and pad selection. Highly porous, damaged or soft-collapsing boxes should be tested before confirming the final model.

Do I need a jib crane or rail system?

Yes, the vacuum tube lifter needs suitable suspension equipment. WOLIFT can match it with a pillar jib crane, wall jib crane, mobile jib crane or KBK rail system.
