VACUUM SHEET METAL LIFTERS
Electric Vacuum Sheet Metal Lifter for Continuous Plate Loading
WOLIFT electric vacuum sheet metal lifter is an AC powered plate handling solution for continuous operation, heavy steel plates, sheet metal loading and laser cutting plate feeding.
AC powered plate handling
Electric vacuum sheet metal lifter for continuous plate loading
WOLIFT electric vacuum sheet metal lifters are designed for long-term uninterrupted operation, high vacuum performance and heavy plate handling. The WO-BC(AC) series uses AC208-460V power and is especially suitable for laser cutting plate loading, steel plate handling and production workshops that require stable continuous lifting.

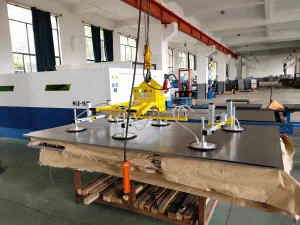

Sheet metal
Suitable for repeated handling of flat sheet metal in cutting, fabrication and production areas.

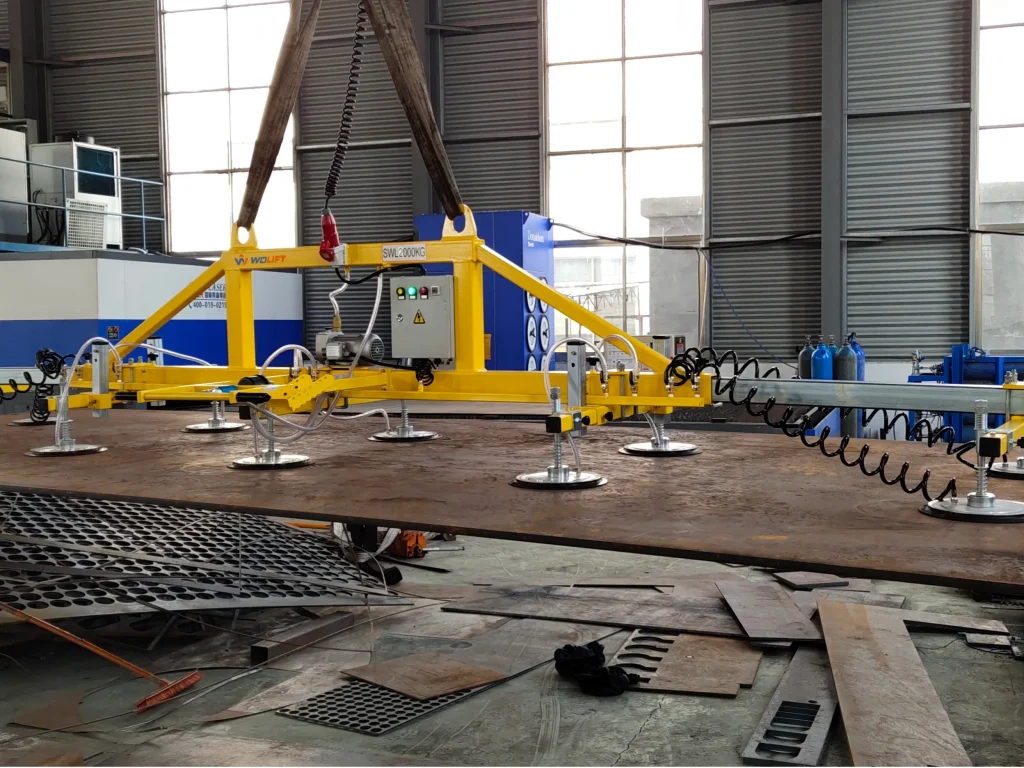

Steel plate
Designed for stable lifting of steel plates, including larger and heavier plate handling requirements.

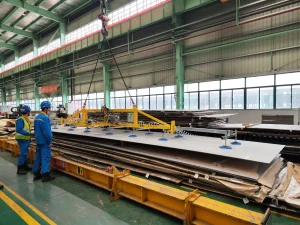

Stainless steel sheet
Helps operators load and unload stainless steel sheets with less manual handling and better surface protection.

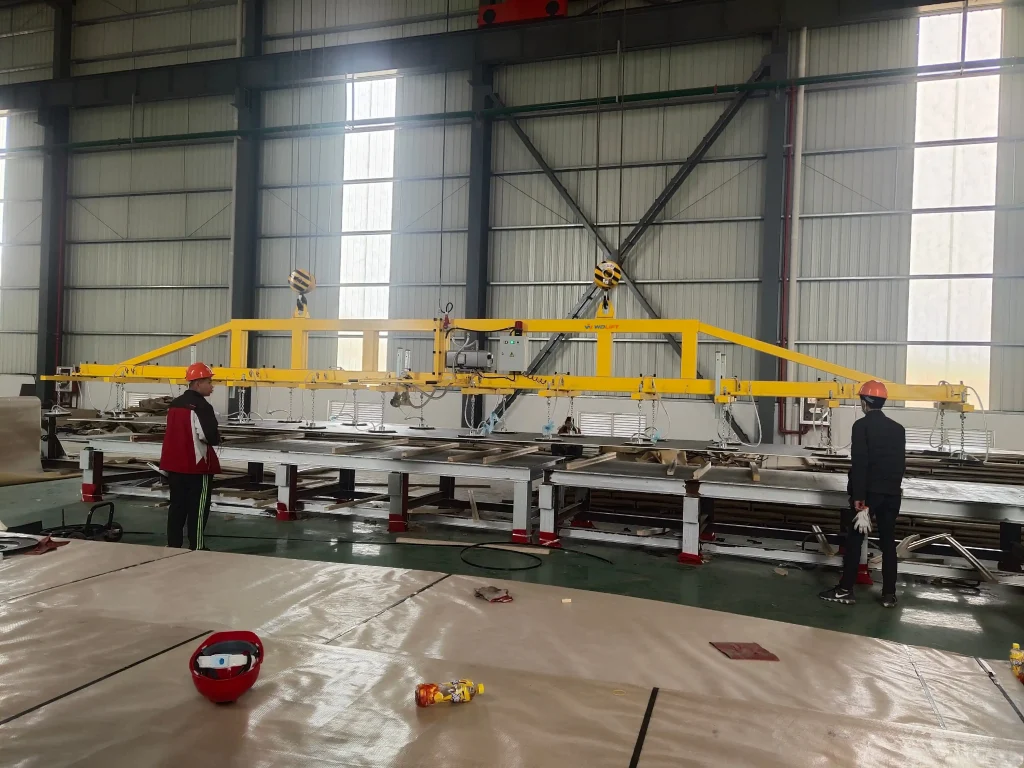

Aluminum plate
Can be used for aluminum plates and other flat non-porous metal plates after surface and weight confirmation.Selection note:
The AC series is suitable for flat, non-porous metal plates. Plate size, thickness, surface condition, vacuum contact area, working shift and power supply should be checked before final model selection.
High vacuum performance
Fast suction speed, high vacuum degree and long service life
The WO-BC(AC) series is built for working conditions that require stable vacuum performance and long working hours. Compared with battery models, the AC powered system is better suited for continuous production lines and high-frequency plate loading tasks without battery runtime limitations.
Applications
Designed for cutting machines and heavy plate workflows
This AC vacuum sheet lifter is suitable for workshops that need stable plate loading, unloading and transfer for long working shifts.
01Laser cutting plate loading

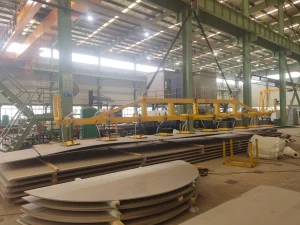

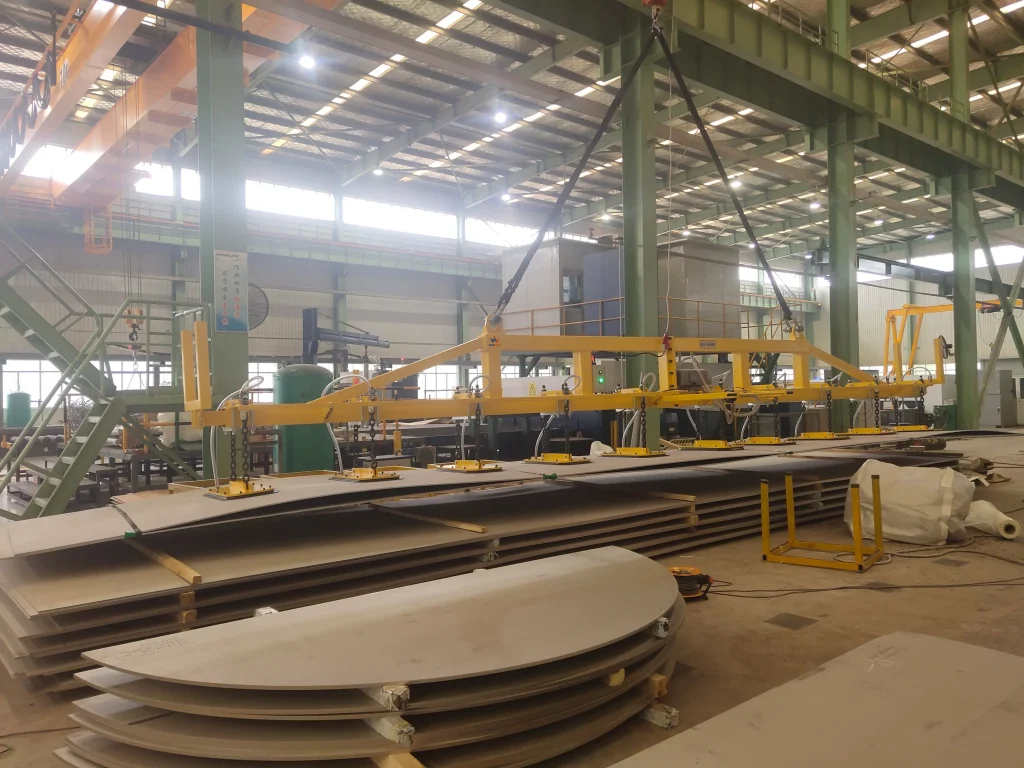

02Plasma cutting plate loading

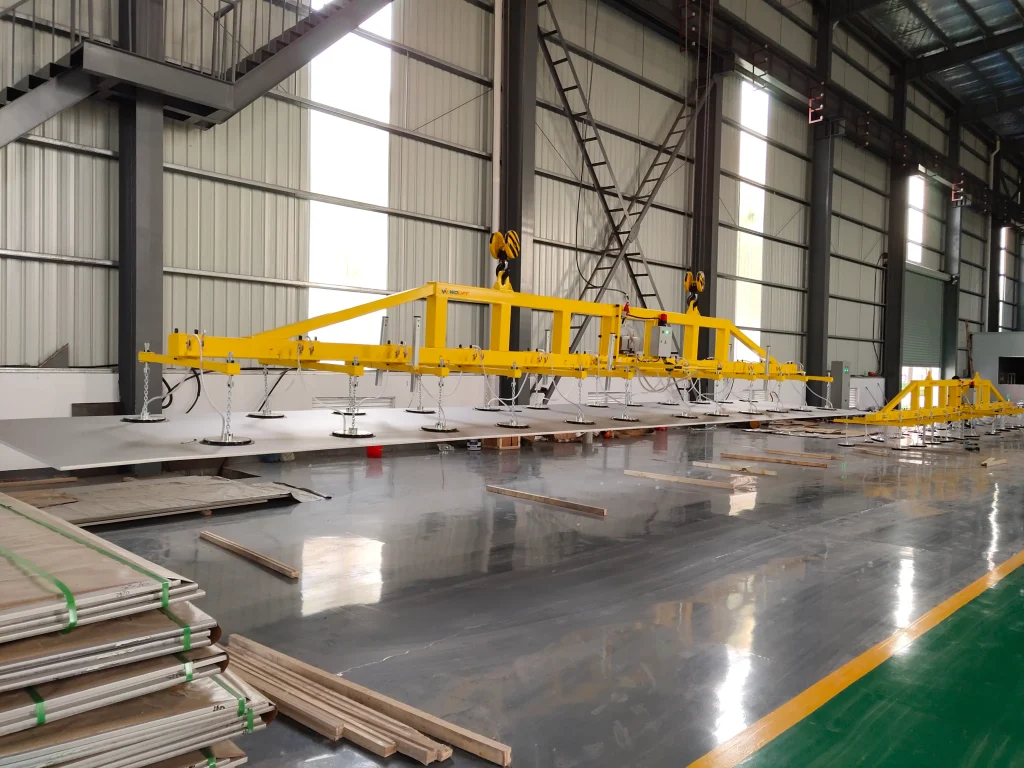

03Steel service center handling

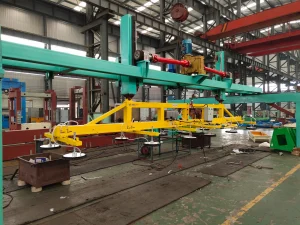

04Heavy plate loading and unloading
Why choose AC power
Better for continuous operation and heavier plate handling
For fixed production areas and long working shifts, an AC powered vacuum lifter provides stable power and avoids battery charging interruptions. It is a strong choice when the same workstation needs repeated plate loading throughout the day.
Plate surface conditions
High vacuum performance for less ideal plate surfaces
The WO-BC(AC) series is suitable for working conditions where plate surfaces are not always perfect. Higher vacuum degree helps improve lifting reliability on flat plates with minor surface variation, but the plate should still be non-porous and reasonably clean for safe suction.
Operation video
Electric Vacuum Sheet Metal Lifter for Steel Plate Handling
See how the WOLIFT electric vacuum sheet metal lifter helps operators lift, move, position, load, and unload metal sheets, steel plates, aluminum sheets, and other flat metal materials with less effort and better control. With electric vacuum suction and smooth operation, the system is suitable for sheet metal fabrication, laser cutting machine loading, CNC processing, warehouse transfer, plate stacking, and production line handling applications.
Models
Electric vacuum sheet metal lifter model reference
The WO-BC(AC) series covers 500 kg to 10000 kg load capacities. Final selection should consider plate weight, size, suction cup quantity, power supply, surface condition and lifting workflow.View model table
| Model | Loading | Size | Sucker Size | Sucker Number | Power System | Control Mode |
|---|---|---|---|---|---|---|
| WO-BC500(AC) | 500KG | 2000 × 800 × 720 mm | Φ230 mm | 6 | AC208-460V (±10%) | Manual / Remote |
| WO-BC800(AC) | 800KG | 2000 × 800 × 720 mm | Φ230 mm | 8 | AC208-460V (±10%) | Manual / Remote |
| WO-BC1000(AC) | 1000KG | 2000 × 800 × 720 mm | Φ300 mm | 8 | AC208-460V (±10%) | Manual / Remote |
| WO-BC1500(AC) | 1500KG | (1000+3000+1000) × 1000 × 950 mm | Φ300 mm | 10 | AC208-460V (±10%) | Manual / Remote |
| WO-BC2000(AC) | 2000KG | (1000+3000+1000) × 1000 × 950 mm | Φ300 mm | 10 | AC208-460V (±10%) | Manual / Remote |
| WO-BC2500(AC) | 2500KG | (1000+3000+1000) × 1000 × 950 mm | Φ300 mm | 12 | AC208-460V (±10%) | Manual / Remote |
| WO-BC3000(AC) | 3000KG | 6000 × 1200 mm | Φ300 mm | 16 | AC208-460V (±10%) | Manual / Remote |
| WO-BC5000(AC) | 5000KG | 6000 × 1200 mm | Φ450 mm | 10 | AC208-460V (±10%) | Manual / Remote |
| WO-BC10000(AC) | 10000KG | (6000+6000) × 2000 mm | 850 × 450 mm | 10 | AC208-460V (±10%) | Manual / Remote |
