What information is needed before quotation?

For quotation, WOLIFT normally needs load weight, dimensions, material surface, lifting orientation, working cycle, pickup and release position, site space, power or air supply, and whether a crane, trolley or special frame is required.

What materials can Battery Vacuum Sheet Metal Lifter | WOLIFT handle?

This product can be configured for glass panels and related sheet materials. Final feasibility depends on surface condition, weight, size, leakage, deformation and the required lifting path.

How should the correct model be selected?

Model selection should be based on the actual load weight, workpiece size, lifting height, stroke, operating frequency, safety requirements and site layout. WOLIFT engineers can recommend a suitable model after reviewing the application.

Is the battery-powered version suitable for sites without fixed power?

Yes. Battery-powered equipment is suitable for outdoor installation, construction sites and areas where fixed power or air supply is not convenient. Battery capacity and charging arrangement should be confirmed according to the working cycle.

What air supply is required?

Pneumatic equipment should be connected to a stable compressed air supply. The required pressure, air consumption and pipeline arrangement should be confirmed according to the final configuration.

What safety features are available?

WOLIFT vacuum lifting equipment can be supplied with CE compliance and vacuum holding function. The detailed safety factor, alarm, vacuum circuit and control design should be confirmed according to product type and application risk.

VACUUM SHEET METAL LIFTERS

Battery Vacuum Sheet Metal Lifter

Name: Battery Vacuum Sheet Metal Lifter | WOLIFT operation video
Uploaded: 2026-09-01
Description: WOLIFT battery vacuum sheet metal lifter is a DC12V mobile plate handling solution for sheet metal, steel plate and smooth-surface plates, with optional fork pockets for forklift-mounted transfer.

WOLIFT battery vacuum sheet metal lifter is a DC12V mobile plate handling solution for sheet metal, steel plate and smooth-surface plates, with optional fork pockets for forklift-mounted transfer.

Request a proposal Back to category

Battery sheet handling

Battery vacuum sheet metal lifter for mobile plate handling

WOLIFT battery vacuum sheet metal lifters are designed for lifting and handling metal sheets and smooth-surface plates without external electricity or compressed air. The WO-BC(DC) series uses a DC12V battery power system and is suitable for large-scale mobile use, laser cutting plate loading and forklift-assisted plate transfer.

Sheet metal

Suitable for mobile handling of flat sheet metal between storage areas, cutting machines and workstations.

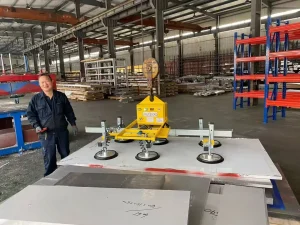

Steel plate

Designed for lifting steel plates where fixed power cables or air lines are inconvenient.

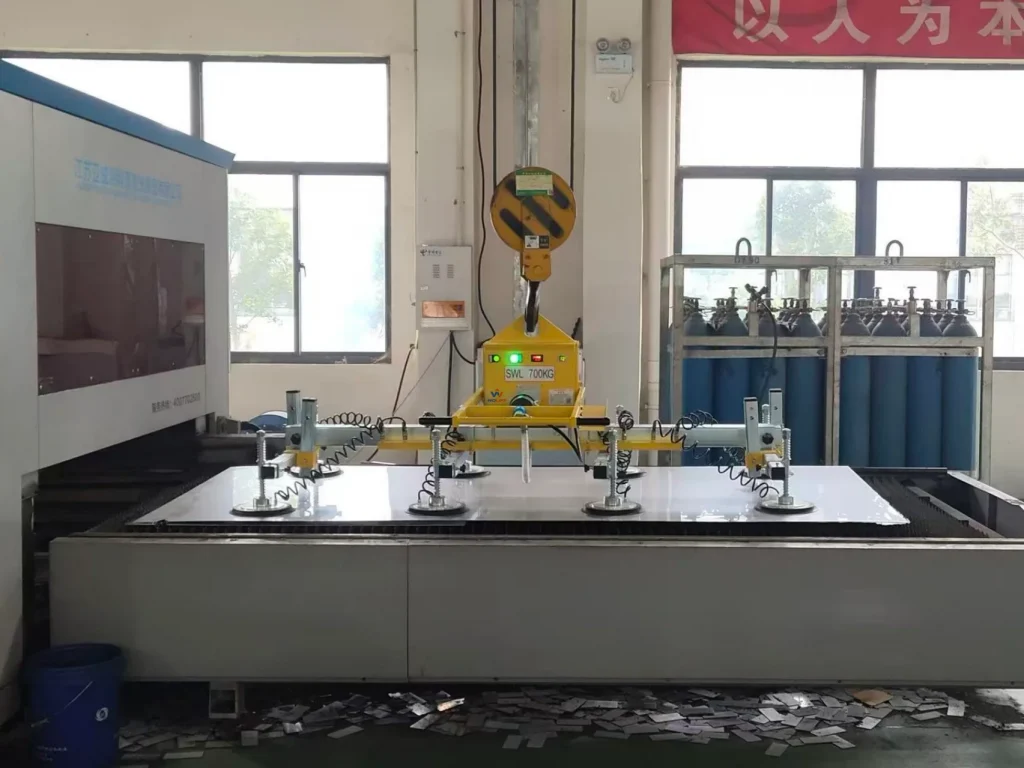

Stainless steel sheet

Helps reduce manual handling of stainless steel sheets in fabrication and cutting workshops.

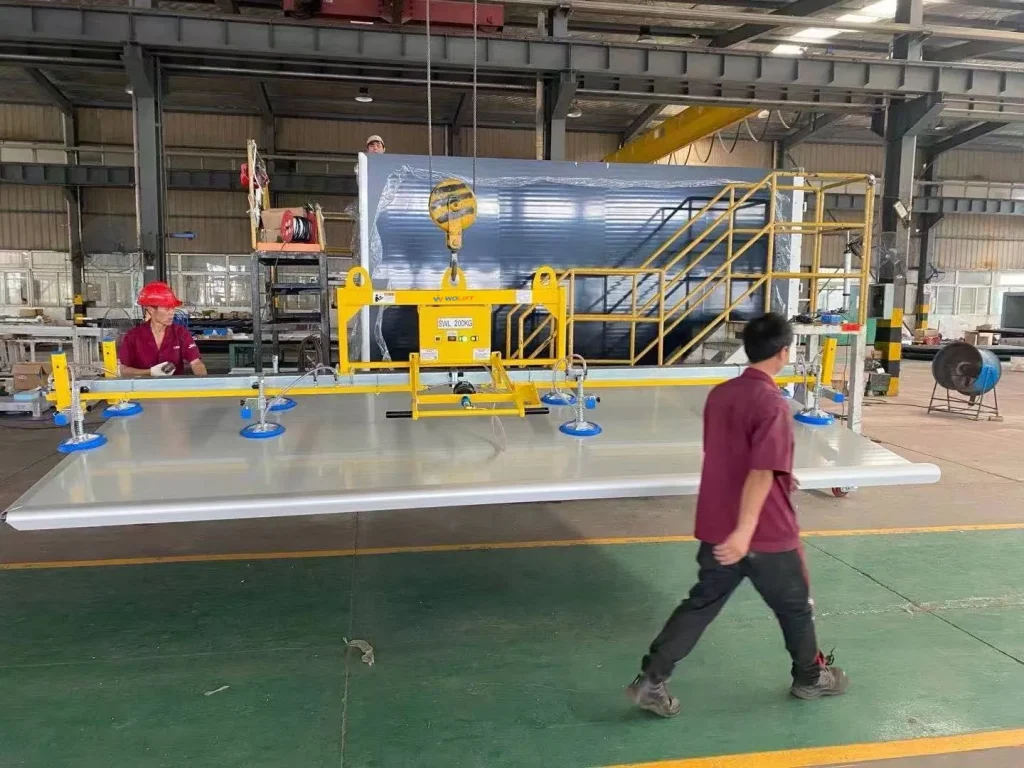

Smooth non-metal plates

Can also handle smooth non-porous non-metal plates after surface condition and load requirements are confirmed.

Selection note: This battery vacuum sheet lifter is suitable for flat and smooth-surface plates. Plate weight, size, surface condition, suction cup layout, battery runtime and forklift use should be confirmed before final configuration.

DC12V battery powered

No external electricity or gas required during use

The WO-BC(DC) series uses a DC12V battery power system, making it convenient for mobile plate handling in workshops, warehouses and cutting areas. It is especially useful where compressed air, fixed power supply or overhead lifting equipment is not available at every workstation.

500-2500 kg Multiple load capacities for sheet metal, steel plate and large smooth-surface plates.

DC12V Battery powered vacuum system for flexible mobile use without air lines.

No cables No external power cable or compressed air hose is required during operation.

Manual control Simple manual suction and release control for plate lifting and positioning.

Applications

Flexible handling for metal sheet storage and cutting areas

This battery powered vacuum sheet lifter is designed for moving plates across different work areas, especially where fixed lifting systems are not convenient.

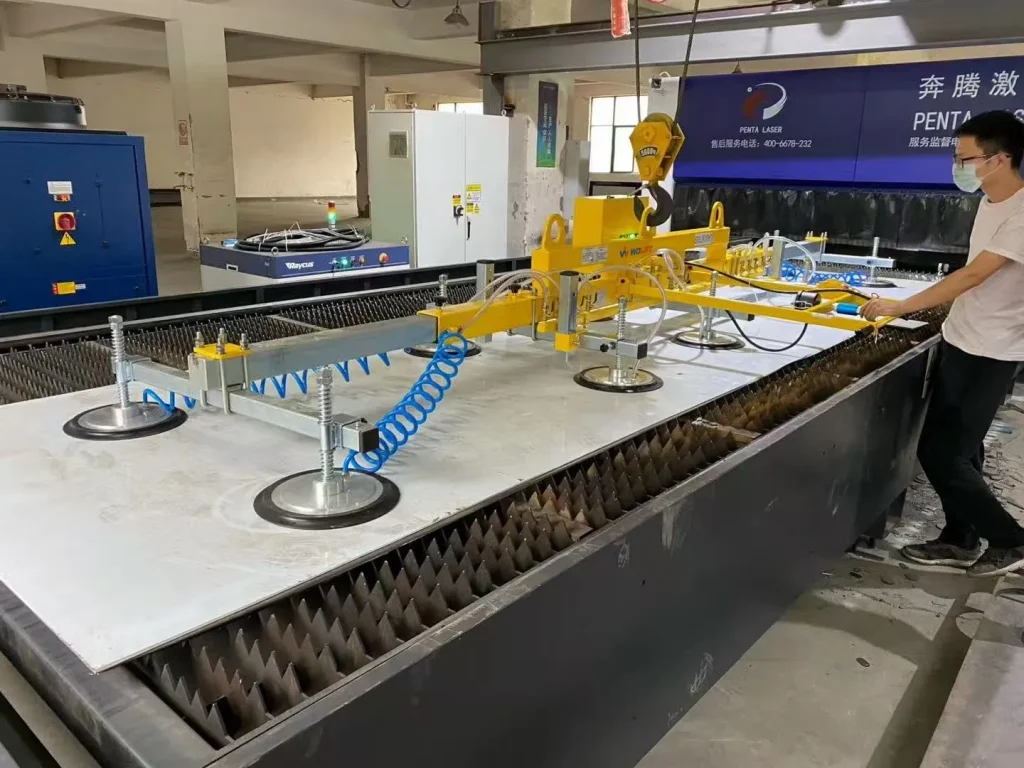

Battery vacuum sheet metal lifter for laser cutting plate loading

01Laser cutting plate loading

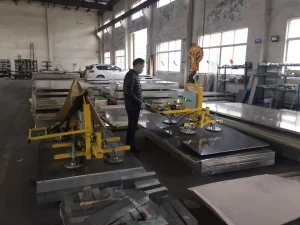

Battery powered vacuum lifter for sheet metal warehouse handling

02Sheet metal warehouse handling

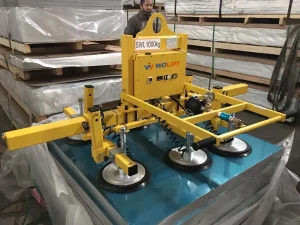

Battery vacuum lifter for steel plate loading and unloading

03Steel plate loading and unloading

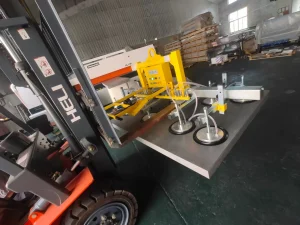

Forklift vacuum sheet lifter for mobile plate transfer

04Forklift-assisted plate transfer

Forklift compatible

Fork pockets can be added for forklift-mounted handling

For mobile plate transfer, the lifter can be designed with forklift pockets so it can be mounted on forklift forks. This allows operators to move sheet metal between storage racks, cutting machines and workstations without relying only on fixed cranes.

Fork pockets Forklift holes can be designed on the equipment for forklift fork mounting.

Mobile use Useful when plates need to move across different areas of the workshop.

Less fixed lifting Helpful when overhead cranes or jib cranes are not available at every station.

Plate transfer Supports plate movement between warehouse, laser cutting machine and fabrication area.

Mobile workflow

Designed for flexible plate handling without air lines

Compared with pneumatic models, the battery series is more flexible for large workshops and mobile handling routes. It keeps suction independent from factory air supply and is easier to move between work zones.

No air line Battery powered suction avoids compressed air hose restrictions.

No power cable Works without external power cable during normal handling.

High capacity Model range covers 500 kg to 2500 kg plate handling requirements.

Large plates Extended frame options support larger plate sizes and more suction cups.

Operation video

Battery Vacuum Sheet Metal Lifter for Portable Metal Handling

See how the WOLIFT battery vacuum sheet metal lifter helps operators lift, move, position, load, and unload metal sheets, steel plates, aluminum sheets, and other flat metal materials with less effort and better control. With battery-powered vacuum suction and portable operation, the system is suitable for sheet metal fabrication, laser cutting machine loading, CNC processing, warehouse transfer, plate stacking, mobile workstations, and production line handling applications.

Models

Battery vacuum sheet metal lifter model reference

The WO-BC(DC) series provides several capacity options from 500 kg to 2500 kg. Final model selection should consider plate weight, plate size, suction cup quantity, forklift use and working route.

View model table

Model	Loading	Size	Sucker Size	Sucker Number	Power System	Control Mode
WO-BC500(DC)	500KG	2000 × 800 × 720 mm	Φ230 mm	6	DC12V	Manual
WO-BC800(DC)	800KG	2000 × 800 × 720 mm	Φ230 mm	8	DC12V	Manual
WO-BC1000(DC)	1000KG	2000 × 800 × 720 mm	Φ300 mm	8	DC12V	Manual
WO-BC1500(DC)	1500KG	(1000+3000+1000) × 1000 × 950 mm	Φ300 mm	10	DC12V	Manual
WO-BC2000(DC)	2000KG	(1000+3000+1000) × 1000 × 950 mm	Φ300 mm	10	DC12V	Manual
WO-BC2500(DC)	2500KG	(1000+3000+1000) × 1000 × 950 mm	Φ300 mm	12	DC12V	Manual

FAQ

Questions about battery vacuum sheet metal lifters

What is the power system of this battery vacuum sheet lifter?

The WO-BC(DC) series uses a DC12V battery power system, so it can work without external electricity or compressed air during handling.

Can this vacuum lifter be used with a forklift?

Yes. Fork pockets can be added to the lifter so the equipment can be mounted on forklift forks for mobile plate transfer.

What materials can it lift?

It is mainly designed for flat metal sheets, steel plates, stainless steel sheets and aluminum sheets. It can also handle smooth non-metal plates after surface and load confirmation.

Is it suitable for laser cutting plate loading?

Yes. The battery powered design is suitable for laser cutting plate loading, especially when the plate storage area and cutting machine are not close to a fixed lifting system.

How do I choose between 500KG and 2500KG models?

Model selection depends on plate weight, size, thickness, suction contact area, handling distance and whether forklift-mounted use is required. WOLIFT can recommend a suitable configuration after reviewing the plate details.
