GLASS VACUUM LIFTERS

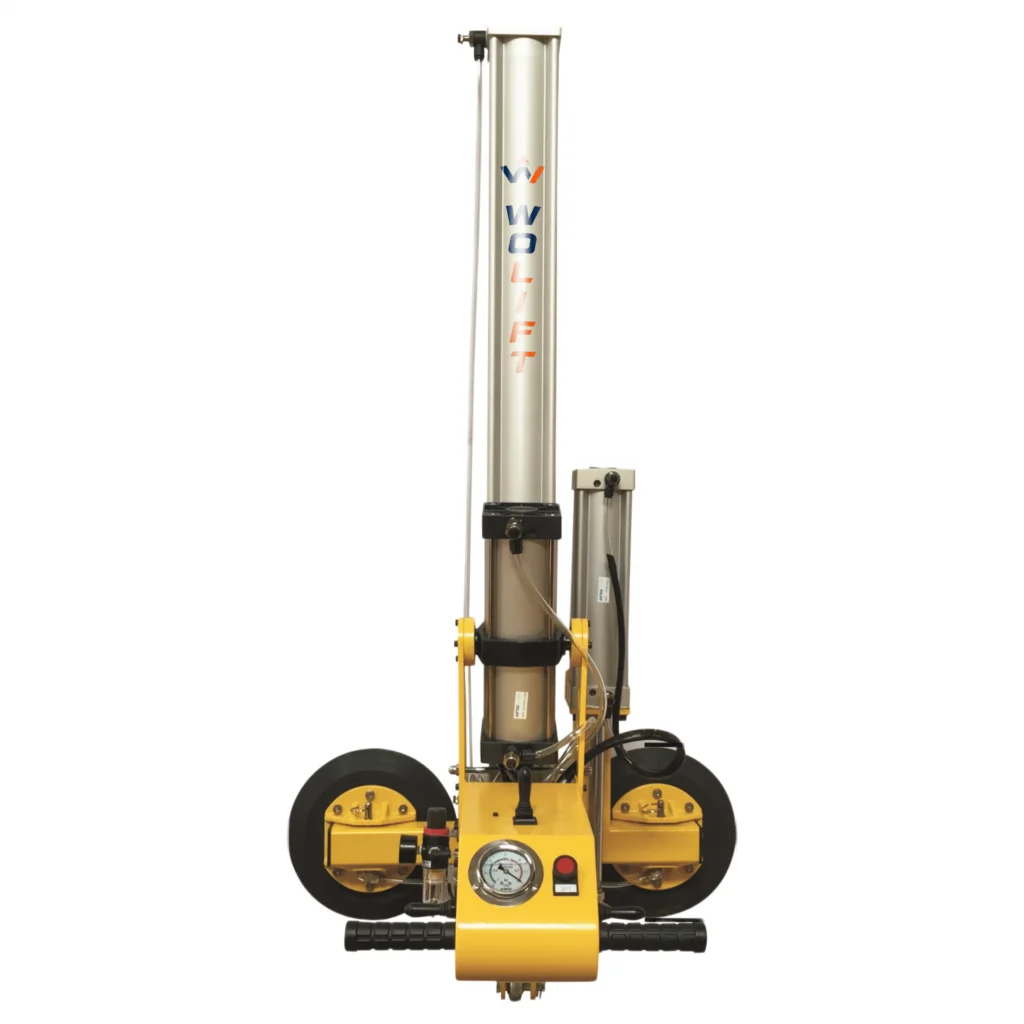

Pneumatic Glass Vacuum Lifter for Processing Lines

Name: Pneumatic Glass Vacuum Lifter for Processing Lines | WOLIFT operation video
Uploaded: 2026-09-01
Description: WOLIFT pneumatic glass vacuum lifters are designed for indoor glass processing lines, including insulating glass, laminated glass, edge grinding and water jet cutting workstations.

WOLIFT pneumatic glass vacuum lifters are designed for indoor glass processing lines, including insulating glass, laminated glass, edge grinding and water jet cutting workstations.

Request a proposal Back to category

Glass processing lines

Pneumatic glass vacuum lifter for indoor processing lines

WOLIFT pneumatic glass vacuum lifters are designed for indoor glass processing factories and fixed workstations. The system connects to compressed air and helps operators lift, flip, rotate, load and unload glass during deep processing workflows.

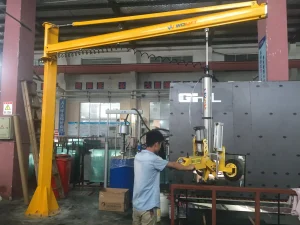

Insulating glass production line

Suitable for loading, unloading and positioning glass panels around IGU production equipment.

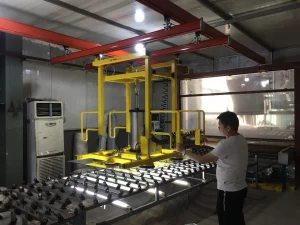

Laminated glass production line

Helps operators transfer and align glass sheets in laminated glass processing workflows.

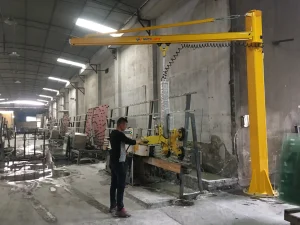

Glass edge grinding

Useful for feeding and removing glass around edge grinding, polishing and related processing stations.

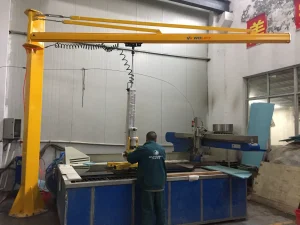

Water jet cutting

Supports glass loading and unloading near water jet cutting equipment and fixed cutting workstations.

Selection note: This product is for indoor compressed-air workstations. For outdoor glass installation, WOLIFT recommends battery, electric or hydraulic glass vacuum lifters.

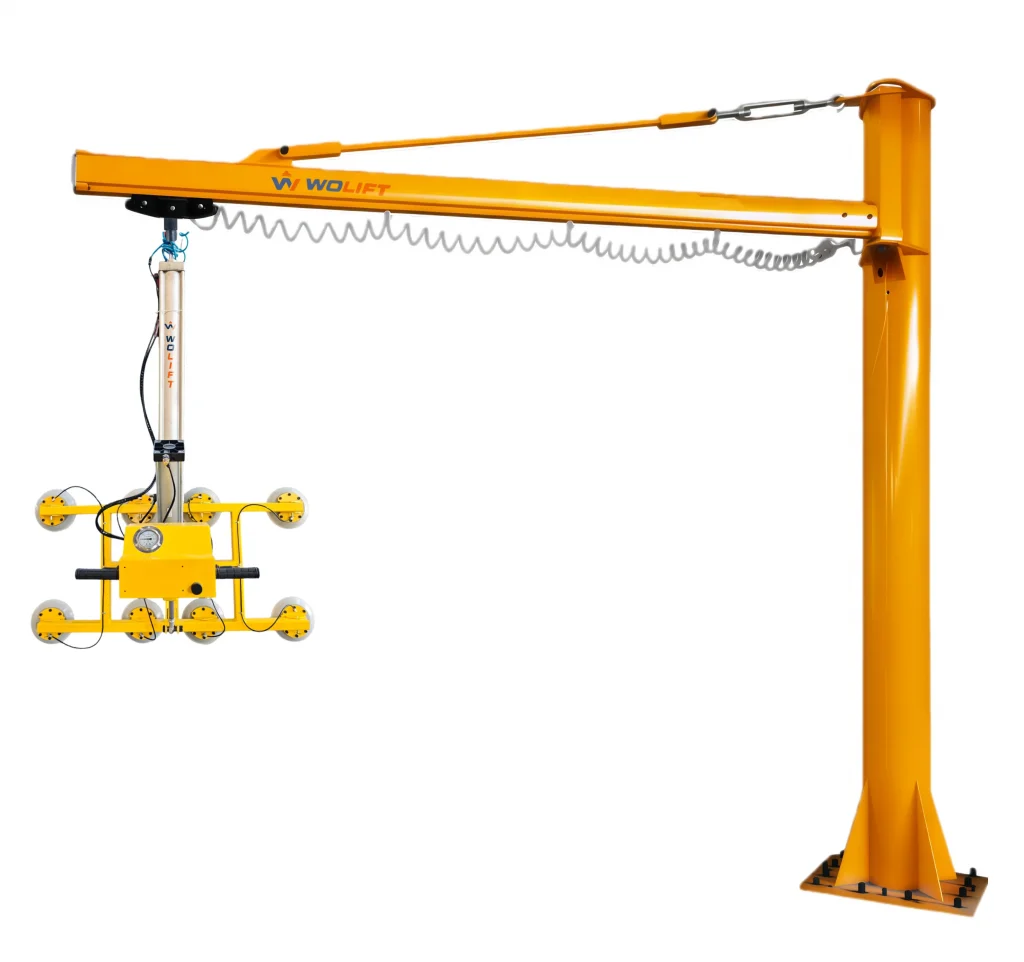

Pneumatic workstation lifter

Compressed-air lifting with 90° pneumatic flip and 90° pneumatic rotation

The WO-BLJG series uses compressed air for fixed workstation glass handling. Cylinder lifting, pneumatic flipping and pneumatic rotation help glass factories move panels quickly and accurately between processing steps.

150-400 kg Model range for common indoor glass processing and fixed workstation handling.

0.6-0.8 MPa Designed for factory compressed air supply, typically requiring at least 0.7 MPa.

0-90° flip Pneumatic flipping supports quick glass angle change during processing and loading.

0-90° rotation Pneumatic rotation helps adjust glass direction at fixed workstations.

Core functions

Fast pneumatic movement for glass factory workstations

These functions focus on what operators need in indoor glass processing: fast lifting, controlled flipping, controlled rotation and precise cylinder adjustment.

Pneumatic glass vacuum lifter with 90 degree pneumatic flipping

010-90° pneumatic glass flipping

Pneumatic glass vacuum lifter with 90 degree pneumatic rotation

020-90° pneumatic glass rotation

Pneumatic glass lifter with fast cylinder lifting

03Fast cylinder lifting and lowering

Pneumatic glass lifter with HAFNER pneumatic control valve fine adjustment

04Pneumatic valve fine adjustment

Workstation mounting

Installed with fixed workstation crane systems

The pneumatic glass vacuum lifter is usually combined with a fixed crane structure according to workstation layout, glass size, machine position and operator reach.

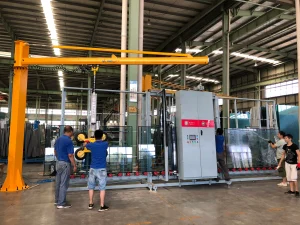

illar-mounted jib crane for pneumatic glass vacuum lifter

Pillar-mounted jib craneSuitable for fixed glass loading, unloading and turning stations.

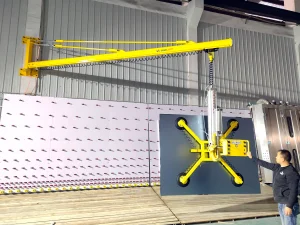

Wall-mounted jib crane for pneumatic glass vacuum lifter

Wall-mounted jib craneUseful when floor space is limited and a strong wall or steel structure is available.

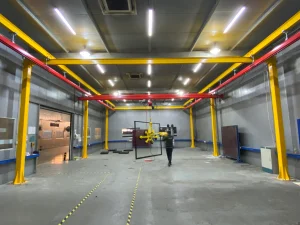

Overhead gantry crane for pneumatic glass vacuum lifter

Overhead gantry craneRecommended for broader fixed workstation coverage and repeated line-side glass handling.

Operation video

Pneumatic Glass Vacuum Lifter for Processing Lines

The WOLIFT pneumatic glass vacuum lifter is designed for safe and efficient glass handling in indoor processing plants and fixed production workstations. Powered by compressed air, the system helps operators lift, lower, flip, rotate, move, and position flat glass panels with less manual effort. It is suitable for insulating glass production, laminated glass processing, window and door manufacturing, glass edge grinding, water jet cutting, machine loading and unloading, warehouse transfer, and other repetitive industrial glass handling applications.

Models

Pneumatic glass vacuum lifter model reference

Model selection should consider glass weight, glass size, suction cup quantity, workstation layout, air supply pressure and processing workflow. Final configuration should be confirmed with WOLIFT engineers.

View model table

Model	WO-BLJG150	WO-BLJG250	WO-BLJG350	WO-BLJG400
Load capacity	150 kg	250 kg	350 kg	400 kg
Function	0-90° flipping + 0-90° rotation	0-90° flipping + 0-90° rotation	0-90° flipping + 0-90° rotation	0-90° flipping + 0-90° rotation
Suction Cup size	Dia. 250 mm	Dia. 250 mm	Dia. 250 mm	Dia. 250 mm
Suction Cup quantity	2	4	6	8
Air supply	0.6-0.8 MPa, typically >=0.7 MPa	0.6-0.8 MPa, typically >=0.7 MPa	0.6-0.8 MPa, typically >=0.7 MPa	0.6-0.8 MPa, typically >=0.7 MPa

FAQ

Common questions about pneumatic glass vacuum lifters

What is a pneumatic glass vacuum lifter used for?

It is used for indoor glass processing lines and fixed workstations, including insulating glass lines, laminated glass lines, edge grinding and water jet cutting loading or unloading.

Does the lifter need electricity?

The main power source is compressed air. It is designed for factories with stable positive pressure air supply rather than outdoor battery operation.

What air pressure is required?

The recommended compressed air supply is 0.6-0.8 MPa, and the system typically requires at least 0.7 MPa for stable operation.

Can it flip and rotate glass?

Yes. The WO-BLJG series can achieve 0-90° pneumatic flipping and 0-90° pneumatic rotation for fixed workstation glass handling.

Can it be mounted on a jib crane or gantry crane?

Yes. It can be combined with a pillar-mounted jib crane, wall-mounted jib crane or overhead gantry crane according to workstation layout.

What information is needed for model selection?

WOLIFT usually needs glass size, glass weight, workstation layout, machine position, required flipping or rotation, air pressure and operator working range.
