PORTABLE LIFTING TROLLEYS

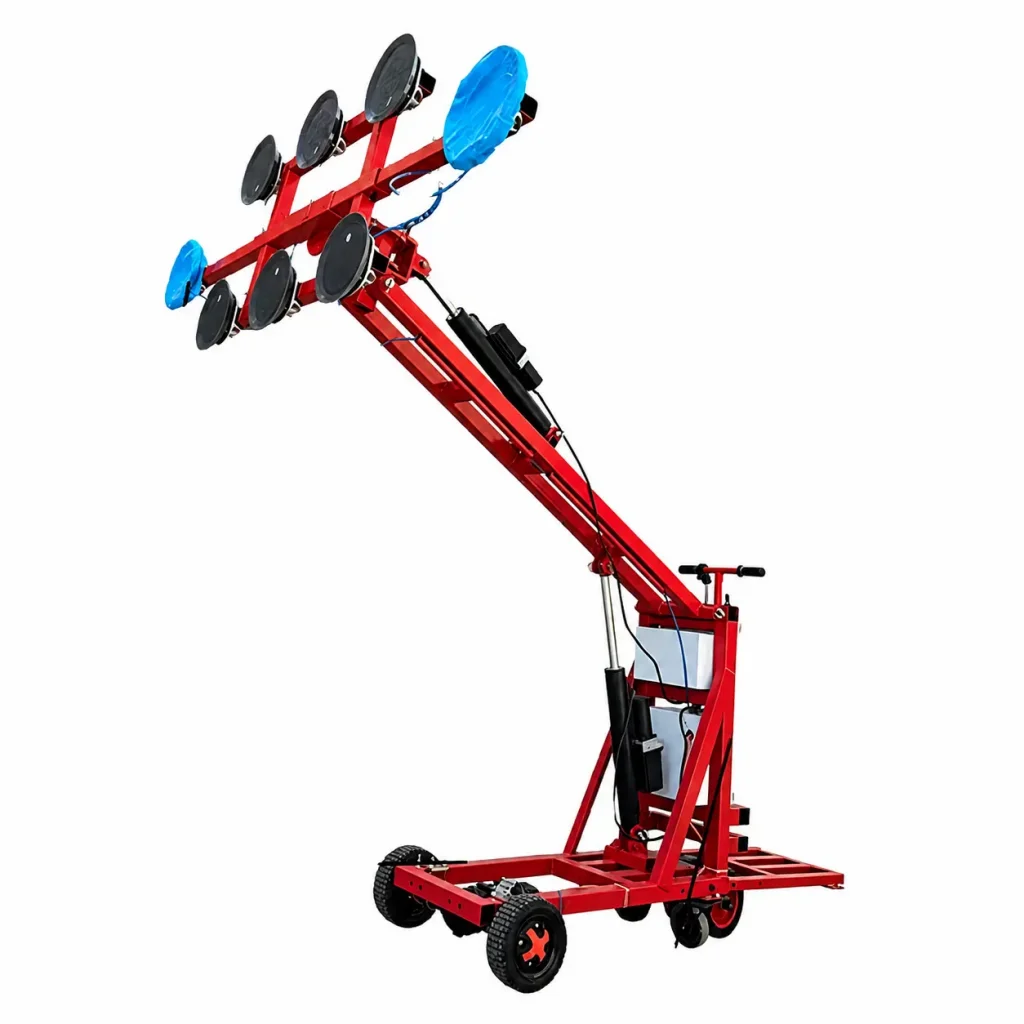

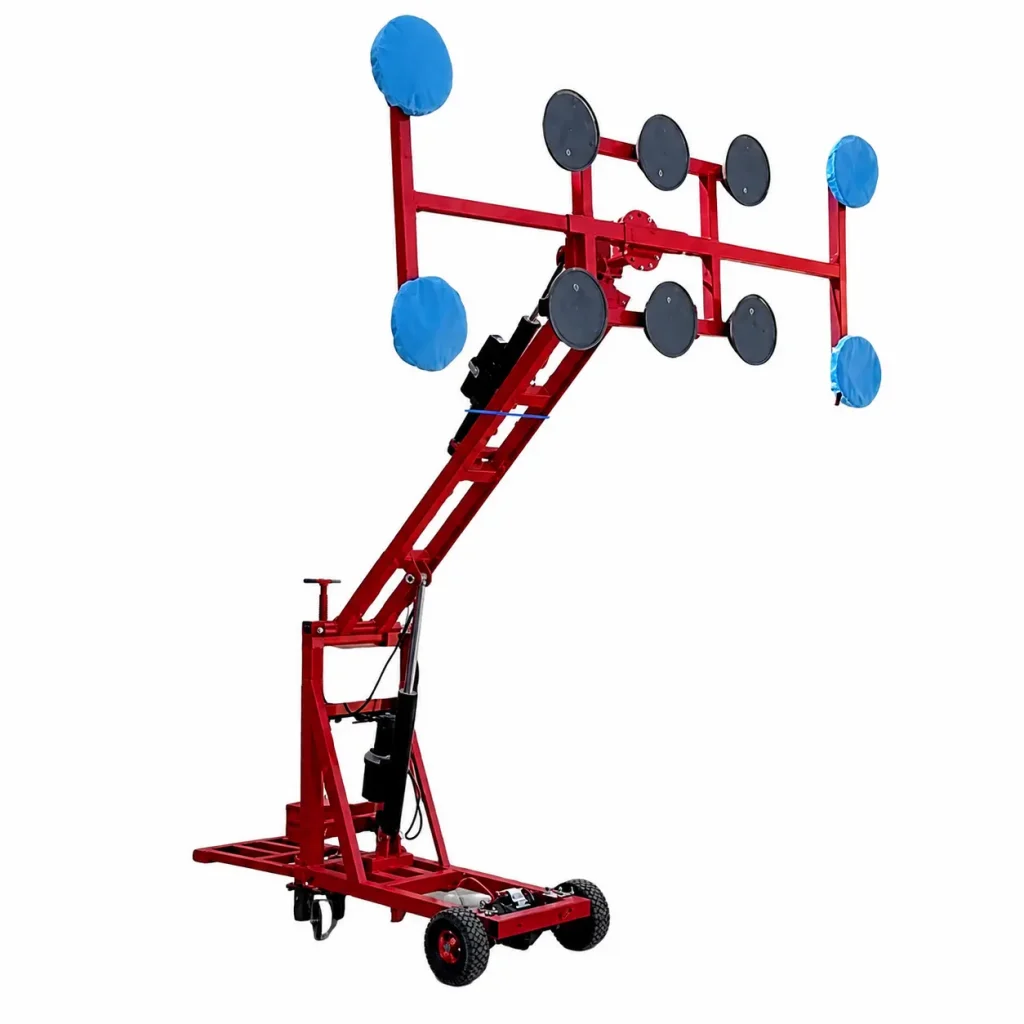

Glass Lifting Robot for Indoor and Construction Site Installation

WOLIFT glass lifting robot is a compact DC48V vacuum handling machine for glass installation, ceramic slabs, stone slabs, sheet metal and solar panels, with electric travel, 90° electric tilt and detachable modules for elevator access.

Request a proposalBack to category
Glass lifting robot

Glass lifting robot for indoor and construction site installation

WOLIFT glass lifting robots are compact battery powered vacuum handling machines for glass installation, indoor panel handling and construction site movement. The WO-BLC series combines electric travel, vacuum suction, 90° electric tilt, 360° manual rotation and manual side tilt to help operators move, lift and position glass panels and other smooth flat materials.

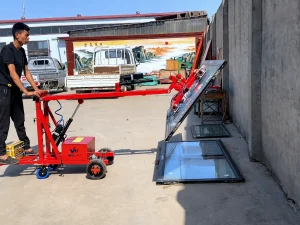

WOLIFT glass lifting robot for glass panel installation

Glass panels

Designed for moving and positioning glass panels during indoor glazing, facade work and site installation.

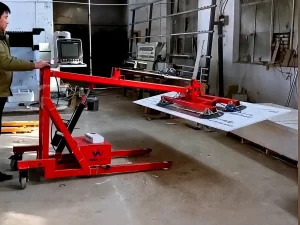

Glass lifting robot for ceramic slab handling

Ceramic slabs

Suitable for large-format ceramic slab handling after surface condition, size and weight are confirmed.

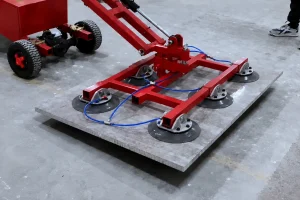

Vacuum glass lifting robot for stone slab handling

Stone slabs

Can be used for natural stone and artificial stone slabs with smooth, non-porous surfaces.

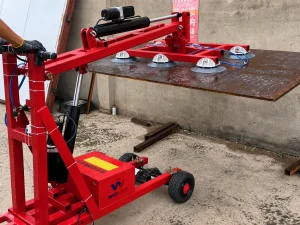

Glass lifting robot for solar panel and sheet metal handling

Solar panels and sheet metal

Also supports photovoltaic modules and smooth sheet metal panels where compact mobile handling is required.
Selection note: This machine is mainly designed for glass installation and smooth flat material handling. Material surface, panel weight, panel size, working height, access width and indoor route should be confirmed before model selection.
Electric travel

Battery powered travel for four-direction movement

The WO-BLC series uses a DC48V battery power system with electric travel. Operators can move the machine forward, backward, left and right, making it suitable for glass installation areas where panels need to be transported from storage to the final installation position.
600-1200 kg Model range for glass panels, large slabs and smooth flat materials.
DC48V Battery powered travel and vacuum system with pump and battery included.
4 directions Electric movement supports forward, backward, left and right travel.
Rubber tires Rubber tires help the machine move on construction sites and indoor floors.
Applications

Compact glass installation equipment for indoor and site work

This glass lifting robot is suitable for projects where glass or panels must be moved through limited access areas and positioned accurately during installation.

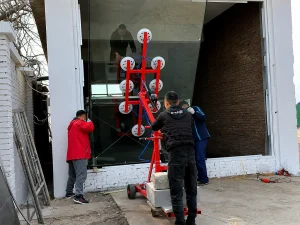

Glass lifting robot for indoor glass installation 01Indoor glass installation

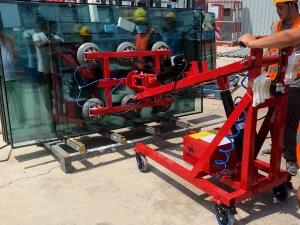

Glazing robot for construction site glass handling 02Construction site glazing

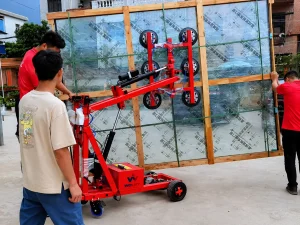

Glass handling robot for curtain wall glass positioning 03Curtain wall glass handling
Compact glass lifting robot for elevator access interior installation 04Elevator-access interior installation
Suction frame movement

90° electric tilt, 360° manual rotation and side tilt

The suction frame is designed for precise final positioning. It can make 90° electric tilt for vertical and horizontal glass positioning, 360° manual rotation for direction adjustment, and 90° manual side tilt to the left or right for angled installation requirements.
90° electric tilt Helps move panels between horizontal handling and vertical installation positions.
360° rotation Manual rotation allows operators to adjust panel direction during installation.
Side tilt 90° manual side tilt supports left and right angle adjustment.
Fine positioning Useful when aligning glass panels, slabs or modules with frames and openings.
Compact access

Detachable modules for indoor rooms and elevator access

Many glass installation projects require equipment to enter indoor areas, narrow passages and elevators. The WO-BLC series has a compact body, removable anti-tip support wheels, detachable boom and detachable suction frame, helping the machine move into interior installation spaces more easily.
Compact body Small machine size helps with indoor access and tight construction spaces.
Detachable boom The boom can be removed when the access route is narrow.
Detachable frame The suction cup frame can be removed for elevator and doorway access.
Support wheels Removable anti-tip support wheels improve stability during lifting and travel.
Safety and stability

Vacuum pump, battery system and stable site movement

The battery powered vacuum system includes the vacuum pump and battery. Combined with vacuum pressure monitoring, rubber tire movement and support wheels, the machine helps operators handle heavy glass and slabs with better control during transport and installation.
Vacuum pump Integrated pump provides suction for glass and smooth flat material handling.
Battery included Battery powered design supports mobile use without external power during operation.
Pressure monitoring Vacuum pressure should be checked during lifting and positioning work.
Site movement Rubber tires support movement on construction sites and finished indoor floors.
Operation video

Glass Lifting Robot for Robotic Glass Handling and Installation

See how the WOLIFT glass lifting robot helps operators lift, move, rotate, position, and install glass panels, windows, doors, curtain wall glass, and other flat sheet materials with better control. With vacuum suction, mobile operation, and precise positioning control, the robot is suitable for glass installation, curtain wall construction, indoor and outdoor glazing work, workshop transfer, and construction site applications.
Models

Glass lifting robot model reference

The WO-BLC series provides 600 kg to 1200 kg load capacities. Final selection should consider panel weight, material type, suction cup quantity, indoor access requirements and installation height.
View model table
Model Loading Size Sucker Size Sucker Number Power System Function
WO-BLC 600 600KG 1800 × 830 × 1300 mm Φ250 mm 6 DC48V 360° manual rotation, 90° manual side tilt, 90° electric tilt
WO-BLC 900 900KG 1800 × 830 × 1300 mm Φ250 mm 8 DC48V 360° manual rotation, 90° manual side tilt, 90° electric tilt
WO-BLC 1100 1100KG 1800 × 830 × 1300 mm Φ250 mm 10 DC48V 360° manual rotation, 90° manual side tilt, 90° electric tilt
WO-BLC 1200 1200KG 1800 × 830 × 1300 mm Φ250 mm 12 DC48V 360° manual rotation, 90° manual side tilt, 90° electric tilt
FAQ

Questions about glass lifting robots

What materials can the glass lifting robot handle?It is mainly designed for glass panels and can also handle smooth flat materials such as sheet metal panels, ceramic slabs, natural or artificial stone slabs and solar photovoltaic modules after surface and weight confirmation.
Can it enter elevators or indoor rooms?Yes. The compact body, detachable boom and detachable suction frame help the machine pass through indoor routes and elevators. Actual access width and elevator size should be checked before use.
What movements can the suction frame perform?The suction frame supports 90° electric tilt, 360° manual rotation and 90° manual side tilt to the left or right for panel positioning.
Can it be used on construction sites?Yes. The rubber tires and compact mobile structure make it suitable for construction site travel and indoor installation areas, but ground condition and site safety should be reviewed before operation.
How do I choose between 600KG and 1200KG models?Model selection depends on panel weight, panel size, material type, suction cup quantity, installation height, access conditions and required handling route. WOLIFT can recommend a suitable model after reviewing project details.
