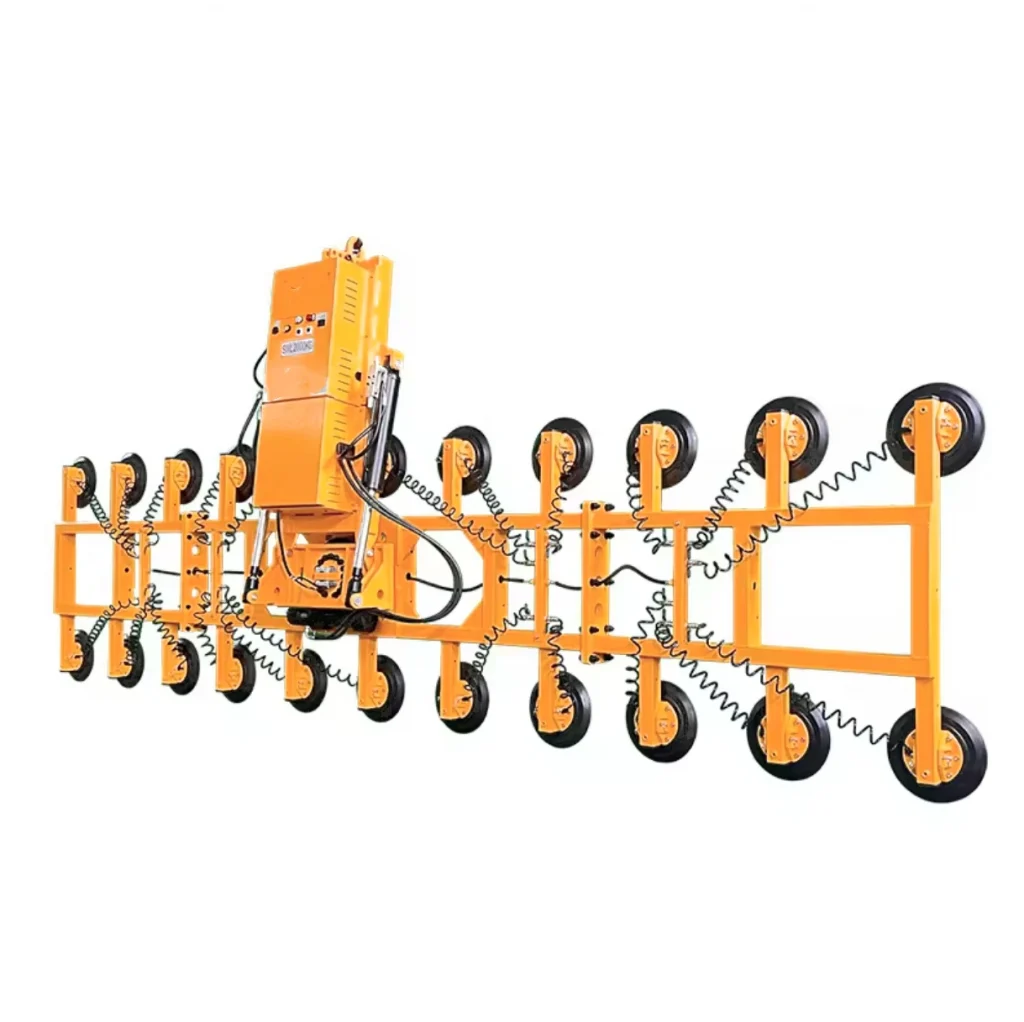

Electric Hydraulic Glass Vacuum Lifter for Large Glass Installation

Name: Electric Hydraulic Glass Vacuum Lifter for Large Glass Installation | WOLIFT operation video
Uploaded: 2026-09-01
Description: WOLIFT electric and hydraulic glass vacuum lifters are designed for large outdoor glass installation, with 0-90° powered flip, 0-360° powered rotation and wireless remote control.

WOLIFT electric and hydraulic glass vacuum lifters are designed for large outdoor glass installation, with 0-90° powered flip, 0-360° powered rotation and wireless remote control.

Request a proposal Back to category

Large glass installation

Electric and hydraulic glass vacuum lifters for heavy outdoor installation

WOLIFT electric and hydraulic glass vacuum lifters are designed for large glass installation, curtain wall projects and heavy-duty outdoor lifting. Compared with manual battery lifters, these powered models provide electric or hydraulic flipping and rotation for safer, more precise positioning of large glass panels.

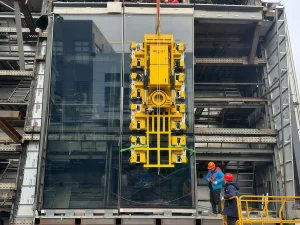

WOLIFT electric glass vacuum lifter for curtain wall installation

Curtain wall glass

Suitable for outdoor facade installation where large glass panels need powered positioning and safe handling.

Large glass panels

Recommended for large and extra-large flat glass where manual flipping and rotation are not efficient enough.

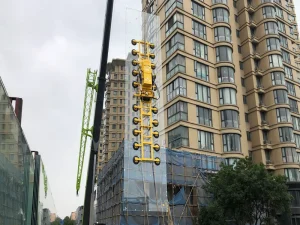

Electric vacuum lifter for insulated glass unit installation

Insulated glass units

Can be configured for IGU glass, laminated glass and architectural glass after confirming size and weight.

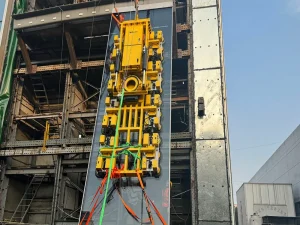

Oversized glass

The hydraulic heavy-duty series can support oversized glass installation with custom multi-section frames.

Selection note: This product page is for powered flat glass installation. For curved glass, WOLIFT recommends a dedicated curved glass vacuum lifter with a special suction cup layout.

Powered control

0-90° powered flip and 0-360° powered rotation for large glass

The electric and hydraulic series help operators position heavy glass with less manual effort. Electric models are suitable for 600-1000 kg glass installation, while hydraulic models are designed for larger and heavier glass from 1500 kg up to 10000 kg.

600-10000 kg Powered model range for large, extra-large and heavy-duty glass installation projects.

Electric / Hydraulic Choose electric motor control or hydraulic drive according to glass size and load capacity.

Wireless remote Remote operation helps improve control during lifting, positioning, suction and release.

Modular frame Multi-section frames and suction cup groups can adapt to different glass dimensions.

How to choose

Choose the right powered glass vacuum lifter series

WOLIFT offers electric and hydraulic powered series for customers who need more precise control than manual flip and manual rotation.

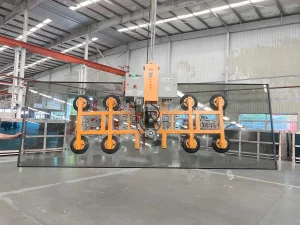

WO-BLHWD d electric glass vacuum lifter for outdoor installation

WO-BLHWD (d)Electric series for 600 kg, 850 kg and 1000 kg glass, with 0-90° electric flip and 0-360° electric rotation.

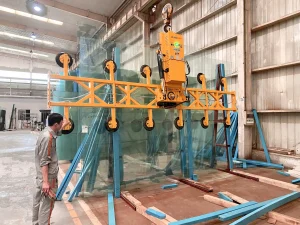

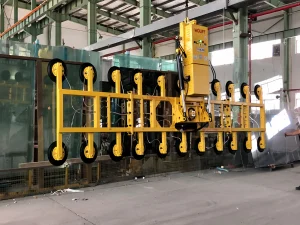

WO-BLHWD y hydraulic glass vacuum lifter for heavy glass installation

WO-BLHWD (y)Hydraulic heavy-duty series for 1500 kg to 10000 kg glass, suitable for large glass installation and handling.

Core functions

Powered movement and safety control for heavy glass

These functions help distinguish this product from manual battery glass lifters and make it suitable for large glass installation projects.

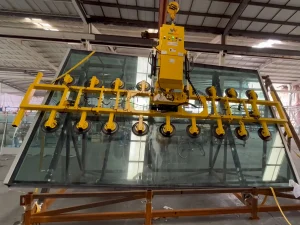

Electric glass vacuum lifter with 90 degree electric flip

010-90° electric or hydraulic flip

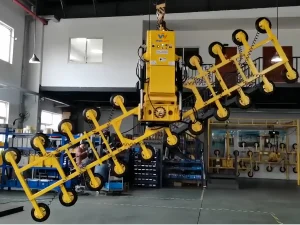

Hydraulic glass vacuum lifter with 360 degree rotation

020-360° electric or hydraulic rotation

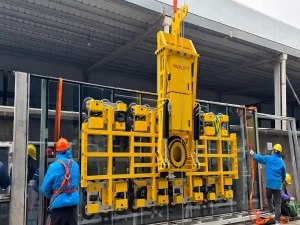

Powered glass vacuum lifter with independent suction cup groups

03Independent suction cup groups

Electric hydraulic glass vacuum lifter with wireless remote operation

04Wireless remote and delayed release control

Operation video

Electric Hydraulic Glass Vacuum Lifter for Heavy Glass Handling

See how the WOLIFT electric hydraulic glass vacuum lifter helps operators lift, move, position, and install large glass panels, windows, doors, curtain wall glass, and other flat sheet materials with better control. The electric hydraulic system and stable vacuum suction support safer handling, smoother positioning, and improved efficiency in glass installation, workshop production, warehouse transfer, and on-site glazing applications.

Models

Electric and hydraulic glass vacuum lifter model reference

Model selection should consider glass weight, glass size, suction cup number, power system, installation height, working angle, site lifting method and safety factor. Final configuration should be confirmed with WOLIFT engineers.

View model table

Model	WO-BLHWD600 (d)	WO-BLHWD800 (d)	WO-BLHWD1000 (d)	WO-BLHWD1500 (y)	WO-BLHWD2000 (y)	WO-BLHWD2500 (y)	WO-BLHWD3000 (y)	WO-BLHWD5000 (y)	WO-BLHWD10000 (y)
Loading	600 kg	850 kg	1000 kg	1500 kg	2000 kg	2500 kg	3000 kg	5000 kg	10000 kg
Size mm	(625+1400+625)x1000x480	(625+1400+625)x1000x480	(625+1400+625)x1000x480	(1375+2500+1375)x1340x580	(1375+2500+1375)x1340x580	(1375+2500+1375)x1340x580	(2600+2800+2600)x600	(2000+4300+2000)x1900	(3000+6000+3000)x1900
Sucker size mm	Dia. 300	Dia. 300	Dia. 300	Dia. 300	Dia. 300	Dia. 300	1200x640	1200x640	1200x640
Sucker number	6	8	10	16	22	26	6	12	20
Power system	DC48V	DC48V	DC48V	DC24V	DC24V	DC24V	DC24V	DC24V	DC24V
Control mode	Wireless remote	Wireless remote	Wireless remote	Wireless remote	Wireless remote	Wireless remote	Wireless remote	Wireless remote	Wireless remote
Function	0-90° electric flip + 0-360° electric rotation	0-90° electric flip + 0-360° electric rotation	0-90° electric flip + 0-360° electric rotation	0-90° hydraulic flip + 0-360° hydraulic rotation	0-90° hydraulic flip + 0-360° hydraulic rotation	0-90° hydraulic flip + 0-360° hydraulic rotation	0-90° hydraulic flip + 0-360° hydraulic rotation	0-90° hydraulic flip + 0-360° hydraulic rotation	0-90° hydraulic flip + 0-360° hydraulic rotation

FAQ

Common questions about electric and hydraulic glass vacuum lifters

When should I choose an electric or hydraulic glass vacuum lifter?

Choose a powered model when the glass is large, heavy or difficult to position manually. Electric and hydraulic models provide powered flip and rotation for more controlled outdoor installation.

What is the difference between the d series and y series?

The WO-BLHWD (d) series is an electric series for 600-1000 kg glass. The WO-BLHWD (y) series is a hydraulic heavy-duty series for 1500-10000 kg large glass installation.

Can the lifter flip and rotate glass automatically?

Yes. The electric series provides 0-90° electric flip and 0-360° electric rotation. The hydraulic series provides 0-90° hydraulic flip and 0-360° hydraulic rotation.

Is it suitable for curtain wall installation?

Yes. These powered glass vacuum lifters are designed for outdoor curtain wall installation, facade glass lifting and large architectural glass positioning.

Can it handle curved glass?

This page is mainly for flat glass. Curved glass usually needs a dedicated curved glass vacuum lifter with a special suction cup arrangement and contact angle design.

What information is needed for model selection?

WOLIFT usually needs glass size, glass weight, installation height, glass orientation, rotation requirements, jobsite conditions and the crane or lifting equipment used on site.
