Coil Vacuum Lifter for Aluminum Coils

Q: What information is needed before quotation?

For quotation, WOLIFT normally needs load weight, dimensions, material surface, lifting orientation, working cycle, pickup and release position, site space, power or air supply, and whether a crane, trolley or special frame is required.

WOLIFT coil vacuum lifters are customized for aluminum coils, steel coils and slit coils, with vertical lifting, 90° tilting and optional mobile aluminum coil vacuum lifting trolley design.

Request a proposal Back to category

Coil vacuum lifter

Coil vacuum lifter for vertical lifting and 90° tilting

WOLIFT coil vacuum lifters are customized vacuum handling systems for aluminum coils, steel coils and slit coils. The equipment can lift coils vertically, tilt them by 90 degrees and help operators move coils between storage, processing, loading and feeding positions with less surface damage than mechanical clamping.

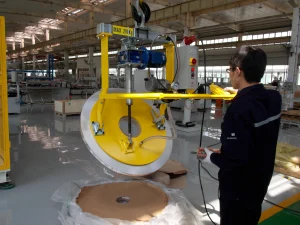

WOLIFT coil vacuum lifter for aluminum coil handling

Aluminum coils

Custom vacuum lifting for aluminum coils where surface protection and stable handling are important.

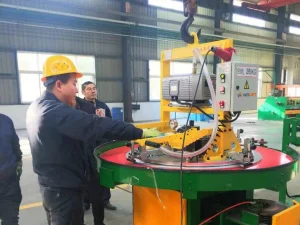

Vacuum coil lifter for steel coil handling

Steel coils

Suitable for steel coil transfer, loading and positioning when the coil surface condition allows vacuum lifting.

Slit coils

Vacuum pad layout can be designed according to coil width, outer diameter and handling direction.

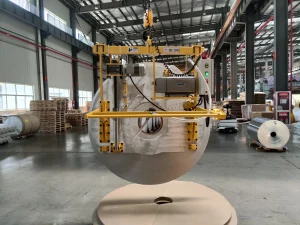

Custom vacuum lifting equipment for coil handling

Custom coils

Designed according to coil weight, diameter, width, surface type and production process.

Selection note: For coil vacuum lifters, the coil material, weight, outer diameter, inner diameter, width, surface condition, lifting direction and 90° tilting requirement should be confirmed before design.

Core functions

Vertical lifting, 90° tilting and vacuum surface protection

The vacuum lifter can be designed to pick coils in a vertical position and tilt them by 90 degrees when the handling process requires position change. Compared with mechanical hooks or clamps, vacuum handling can reduce direct pressure marks on the coil surface and edges.

Vertical lifting Designed for vertical coil pickup, transfer and positioning.

90° tilting Helps change coil orientation between vertical and horizontal handling positions.

Vacuum handling Reduces surface and edge damage compared with direct mechanical clamping.

Custom suction pads Pad quantity and layout are matched to coil diameter, width and surface condition.

Mobile solution

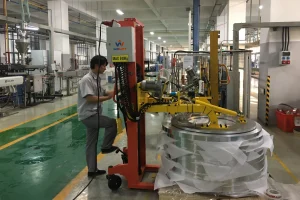

Aluminum coil vacuum lifting trolley

For workshops that need flexible coil movement without a fixed crane at every station, WOLIFT can design the equipment as an aluminum coil vacuum lifting trolley. The mobile structure can support coil transfer, temporary storage handling and workstation feeding inside the factory.

Trolley type

Mobile coil handling without fixed crane coverage

The aluminum coil vacuum lifting trolley is suitable for factories that need to move coils between storage areas, machines and temporary workstations. It can combine vacuum pickup, vertical lifting and 90° tilting in one mobile structure.

Mobile aluminum coil handling inside the workshop
Coil loading and feeding support for production stations
90° tilting function can be integrated into the trolley structure
Customized according to coil size, load and travel route

Safety and control

Vacuum monitoring for safer coil handling

Coil handling usually involves heavy and high-value materials, so vacuum safety is a key part of the design. The system can include vacuum reserve, pressure monitoring and alarm functions according to the lifting risk and operating environment.

Vacuum reserve Vacuum accumulator can help maintain holding force during short power or air interruption.

Pressure monitoring Vacuum pressure gauge or sensor helps operators check lifting safety before movement.

Alarm option Audible and visual alarm can be added for low vacuum pressure warning.

Control method Manual or electric tilting control can be selected according to coil weight and frequency.

Technical reference

Coil vacuum lifter custom configuration reference

The following information is used for quotation and design discussion. Final specifications should be confirmed according to actual coil data and site conditions.

View configuration table

Product Type	Coil vacuum lifter / aluminum coil vacuum lifter / vacuum coil lifting trolley
Materials	Aluminum coils, steel coils, slit coils and suitable roll materials
Lifting Direction	Vertical lifting
Tilting Function	90° tilting, customized according to handling process
Structure Type	Crane suspended type or mobile aluminum coil vacuum lifting trolley
Vacuum System	Customized suction pad layout, vacuum reserve, pressure monitoring and alarm options
Required Data	Coil material, weight, outer diameter, inner diameter, width, surface condition, power supply, lifting route

FAQ

Questions about coil vacuum lifters

Can the coil vacuum lifter handle aluminum coils?

Yes. WOLIFT can customize aluminum coil vacuum lifters according to coil weight, outer diameter, width, surface condition and lifting direction.

Can the equipment tilt coils by 90 degrees?

Yes. The equipment can be designed with a 90° tilting function to change the coil position during handling, loading or feeding.

Will vacuum lifting damage the coil surface?

Vacuum lifting can reduce direct mechanical clamping marks, but the suction pad material and contact area should be selected according to the coil surface condition.

Can it be made as a mobile coil lifting trolley?

Yes. WOLIFT can design an aluminum coil vacuum lifting trolley for flexible movement inside the workshop when fixed crane coverage is not available.

What information is needed before quotation?

Please provide coil material, maximum weight, outer diameter, inner diameter, coil width, surface condition, lifting direction, tilting requirement, power supply and site layout.
