CRANE SYSTEMS

Column Mounted Jib Cranes

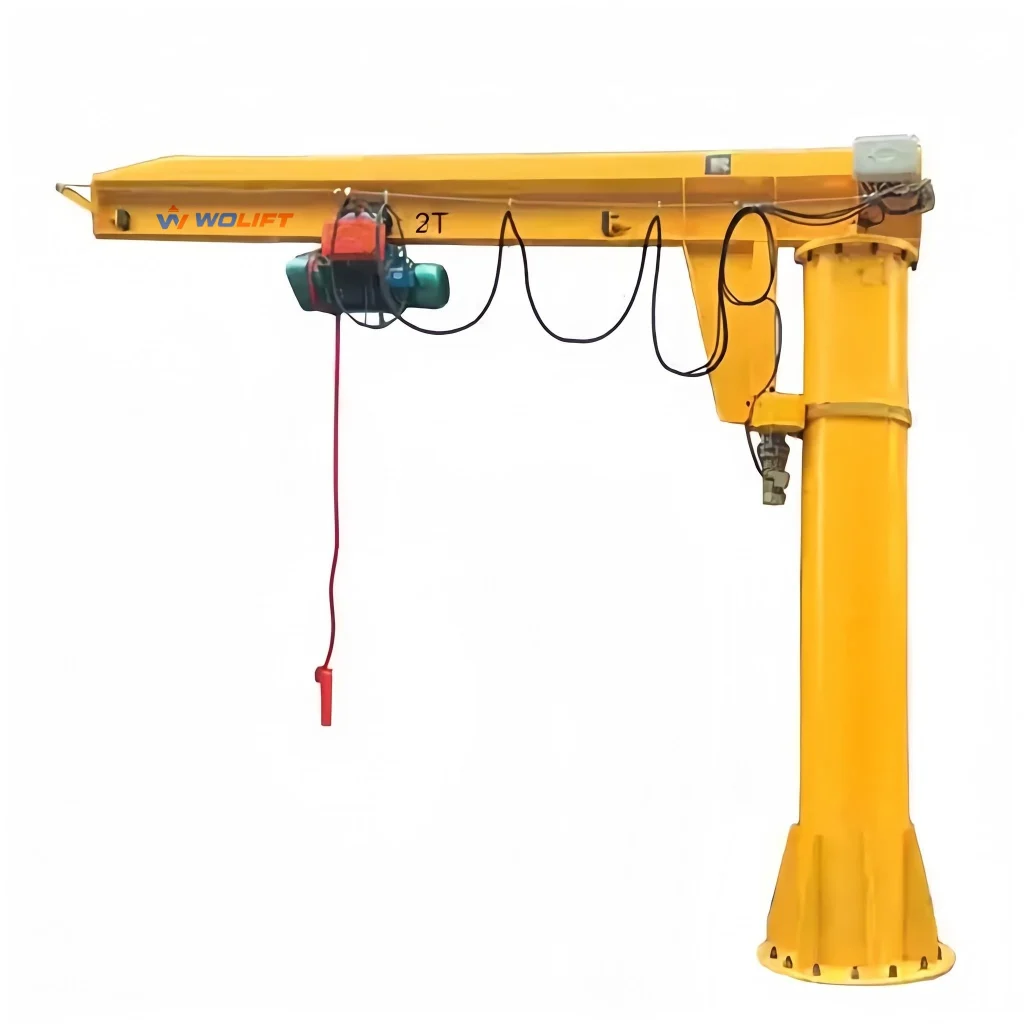

WOLIFT column mounted jib cranes are custom lifting structures designed according to load capacity, arm length, column height, working radius and operation method, with manual and electric options.

Request a proposal Back to category

Column mounted jib cranes

Column mounted jib cranes for custom workstation lifting

WOLIFT column mounted jib cranes are customized lifting structures for workstation handling, material lifting and production line support. Each pillar mounted jib crane is designed according to load capacity, arm length, column height, working radius, rotation angle and operation method.

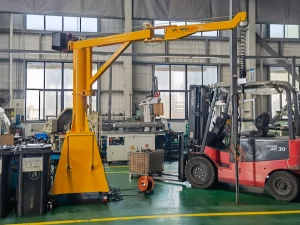

WOLIFT column mounted jib crane for custom workstation lifting

Custom structure

Designed according to the customer's site layout, foundation condition, lifting height and working radius.

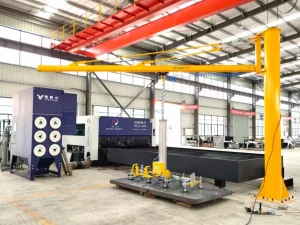

Pillar mounted jib crane with customized arm length

Custom arm length

Arm length can be selected according to the workstation coverage area and required lifting range.

Manual or electric

Manual operation is suitable for lighter loads, while electric operation is recommended for higher capacities.

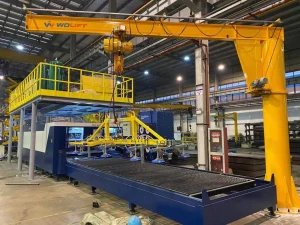

Up to 2500KG

Load capacity can be customized up to 2500KG according to the lifting task and site conditions.

Selection note: WOLIFT column mounted jib cranes do not use fixed standard models. Load capacity, arm length, column height, rotation angle, working radius and operation method should be confirmed before production.

Load and operation

Manual below 500KG, electric above 500KG

For loads within 500KG, WOLIFT can provide manual column mounted jib crane solutions when the arm length and operation frequency are suitable. For loads above 500KG, full electric operation is recommended to improve handling efficiency and reduce operator effort.

≤500KG Manual operation can be selected for lighter loads and suitable working radius.

>500KG Full electric operation is recommended for heavier loads and frequent use.

2500KG max Customized load capacity can be designed up to 2500KG.

Site based Final drive method depends on load, arm length, rotation range and work frequency.

Arm materials

Aluminum alloy, KBK and stainless steel jib arms

Different jib arm materials can be selected according to load, working environment, cleanliness requirements and operation feel.

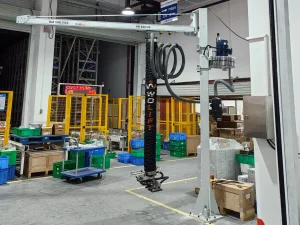

Aluminum alloy column mounted jib crane arm

01Aluminum alloy arm for lightweight and smooth manual movement

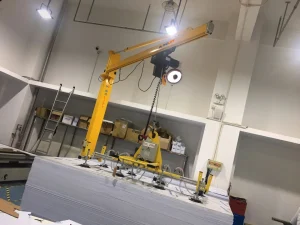

02KBK arm for modular workstation lifting and smooth trolley travel

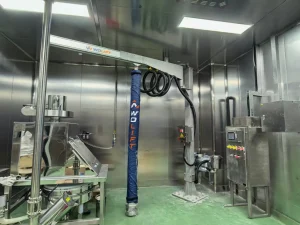

Stainless steel column mounted jib crane arm

03Stainless steel arm for clean, corrosion-resistant or special environments

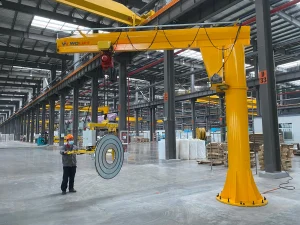

Custom pillar mounted jib crane material selection

04Material selection according to load, site environment and operation needs

Custom information

Information required before designing a custom jib crane

Because the column mounted jib crane is customized, the design should be based on actual site data. Clear project information helps WOLIFT confirm the structure, rotation method, arm material and operation mode more accurately.

Load capacity Required lifting weight and safety margin.

Arm length Required working radius and coverage area.

Column height Available lifting height and site clearance.

Rotation angle Required swing range and surrounding obstacles.

Configuration

Column mounted jib crane custom configuration reference

There is no fixed standard model for this product. The following table is a reference for custom configuration discussion.

View configuration table

Product Type	Column mounted jib crane / pillar mounted jib crane / floor mounted jib crane
Max Load	Up to 2500KG
Operation	Manual below 500KG, full electric above 500KG
Arm Material	Aluminum alloy, KBK, stainless steel
Custom Items	Load capacity, arm length, column height, working radius, rotation angle, foundation condition

FAQ

Questions about column mounted jib cranes

Is there a standard model for WOLIFT column mounted jib cranes?

No. WOLIFT column mounted jib cranes are customized according to load capacity, arm length, column height, working radius, rotation angle and site conditions.

What load capacity can be customized?

The load capacity can be customized up to 2500KG. For loads above 500KG, WOLIFT usually recommends a full electric solution.

When should I choose manual or electric operation?

Manual operation is suitable for loads within 500KG when the working radius and frequency are reasonable. Electric operation is better for heavier loads, longer arms and frequent use.

Which jib arm material should I choose?

Aluminum alloy is light and smooth for lighter loads, KBK is modular and suitable for workstation lifting, and stainless steel is suitable for clean, corrosion-resistant or special environments.
