WOLIFT Dual-Hook Drum Vacuum Tube Lifter for Chemical Square Drum Handling

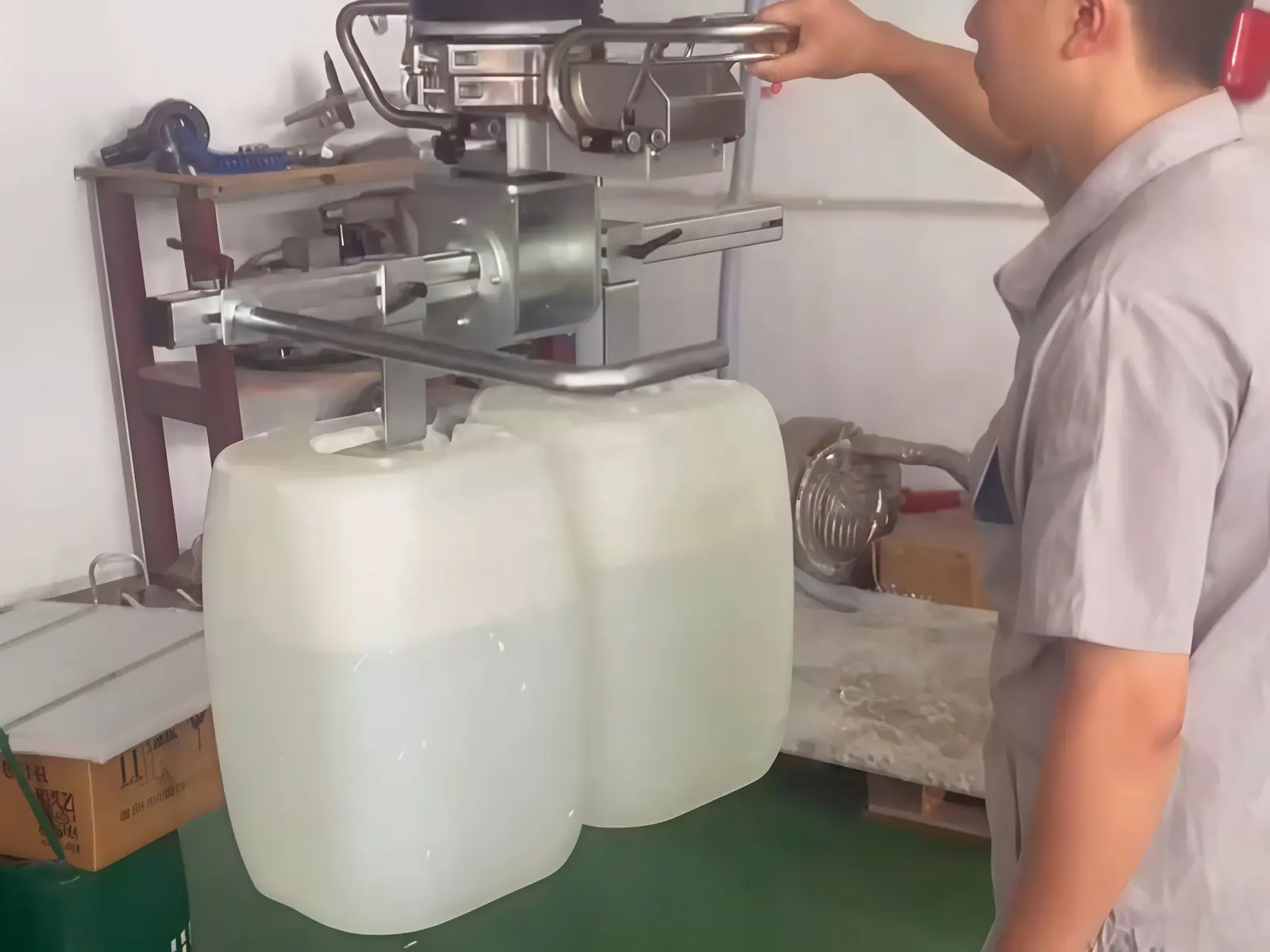

A chemical factory needed a faster and easier way to move square plastic drums between production feeding, warehouse storage and line-side handling areas. Single-hook lifting meant one drum per trip, and fixed hooks were difficult to align with drum handles when the drums were tightly placed. WOLIFT custom-designed a pneumatic drum handling lifter with synchronized dual hooks and 90° tilting hooks, allowing one operator to handle two drums at a time with smoother engagement.
Application
Square drum handling
Material
Chemical plastic drums
Capacity
Two drums per trip
Power source
Compressed air
The challenge: one drum per trip and difficult hook alignment
In the customer's chemical workshop, square plastic drums were moved frequently for production feeding, finished material storage and position adjustment. Traditional single-hook lifting devices could only handle one drum at a time, so batch transfer required repeated trips. Hooking was another time-consuming step. Fixed-angle hooks had to line up with the drum lifting handles, but square drums are often placed close together. When the hook angle did not match, workers had to reposition the equipment or force the hook by hand, increasing fatigue and slowing down each transfer.The solution: pneumatic drum lifter with synchronized dual hooks
WOLIFT designed a dedicated vacuum tube lifter for drums with a pneumatic hoist and synchronized dual-hook lifting attachment. Both hooks lift and lower at the same time, allowing the operator to move two standard chemical square drums in one handling cycle. Compared with a single-hook device, the system doubles the number of drums handled per trip. This is especially useful for line-side feeding and warehouse batch transfer, where reducing repeated travel directly improves handling efficiency.
90° tilting hooks for easier engagement
The key detail in this design is the 90° tilting hook mechanism. Instead of moving the whole lifter repeatedly to chase the handle angle, the operator can adjust the hook angle on site and guide the hook into the drum handle more naturally. This is helpful when drums are densely arranged and there is little room to shift them. The worker can insert the hook, tilt it into position and engage the handle without bending the hook by hand or fighting the equipment.The system improves two daily pain points at once: it carries two drums per trip and makes hook engagement much easier.
Pneumatic drive for smoother chemical drum handling
The lifter uses compressed air as the power source and does not require electric drive at the lifting point. For chemical workshops, this helps avoid sparks, motor brush dust and complex electrical wiring around material handling areas. The lifting and lowering motion is cushioned and smooth. Because the drums contain liquids, reducing sudden starts, stops and swinging helps lower the risk of spills, impact damage and unsafe movement during transfer.The result: faster batch handling with less operator effort
After the WOLIFT dual-hook drum lifter was put into use, the workshop handling pace improved noticeably. The customer reported that transfer time for a batch of materials was reduced by about 40%, and one operator could complete batch transport and stacking without extra helpers. Workers also found the hooking process much easier than with fixed hooks. The lifting process became more stable, drum swaying was reduced, and incidents of spillage and impact damage decreased. With pneumatic drive and a simple mechanical hook structure, daily maintenance remained straightforward.Case video
The video shows how the WOLIFT dual-hook pneumatic drum lifter engages square drum handles, lifts two drums together and supports smoother chemical workshop transfer.RFQ questions for a similar drum handling solution
After seeing this dual-hook drum handling case, chemical plant users usually ask these practical questions before choosing a similar system.Can this lifter move two drums at the same time?
Yes, if the drum size, filled weight and handle structure match the dual-hook design. WOLIFT checks the actual drum specification before confirming the lifting attachment.Will the hooks be difficult to engage when drums are tightly placed?
The 90° tilting hook design helps the operator adjust the hook angle without moving the whole device repeatedly, making it easier to connect with handles in dense storage areas.Is pneumatic lifting suitable for chemical workshops?
Compressed-air drive avoids electric motors at the lifting point and provides smoother lifting and lowering, which can be useful where drums contain liquids or the workshop has stricter safety requirements.Will the drums swing or spill during transfer?
The pneumatic lifting motion is cushioned and smoother than many chain-hoist movements. Correct hook spacing and controlled travel help reduce swaying and lower the risk of spills.ENGINEERING SUPPORT
