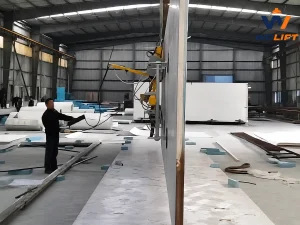

WOLIFT 90° Electric Tilting Vacuum Lifter for 1,200 kg Reefer Body Panels
A refrigerated truck body manufacturer needed a safer way to lift, flip and position large insulated sandwich panels during body assembly. Each panel could weigh up to 1,200 kg, and manual guidance with slings or hooks created safety risks, surface damage and slow assembly. WOLIFT supplied a 90° electric tilting vacuum lifter so one operator could pick panels from a horizontal stack and rotate them into vertical position with controlled movement.
Application
Reefer panel assembly
Material
Insulated sandwich panels
Capacity
1,200 kg
Function
90° electric tilting
The challenge: lifting and standing up heavy insulated panels
The customer manufactures refrigerated truck bodies. The walls, floor and roof of the insulated body are built from large sandwich panels that must be lifted from storage, moved to the assembly area and positioned accurately against the body frame. The most difficult step was turning a panel from horizontal to vertical. With a panel weighing up to 1,200 kg, this process was risky when handled by slings, hooks and several workers pulling by hand. If the panel swung, slipped or hit the frame, it could damage the panel and create serious safety hazards.The solution: 90° electric flip with vacuum gripping

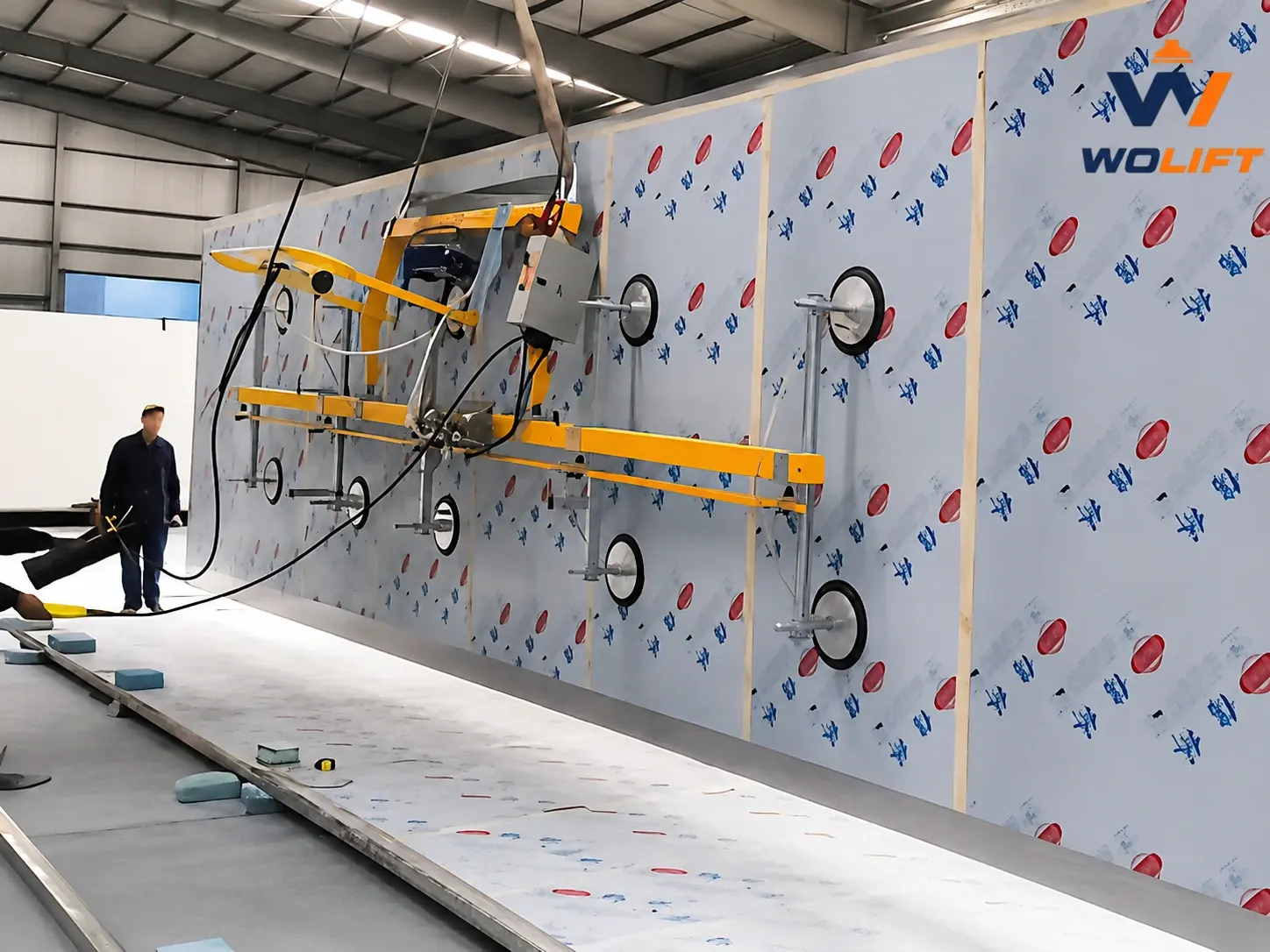

WOLIFT supplied a 90-degree tilting vacuum lifter rated for 1,200 kg. Instead of lifting from the panel edge with hooks or straps, the equipment grips the panel surface with vacuum suction cups and rotates the load by electric tilting. The operator picks up the panel from a horizontal stack, lifts it clear, then tilts it into the vertical position at the touch of a button. The movement is controlled and repeatable, so the panel can be presented to the truck body frame with less swinging and less manual force.
Independent suction cup control for reinforced panels
The lifter uses multiple 300 mm suction cups. Each cup is rated to carry 100 kg at a 4x safety factor, giving the complete configuration a comfortable margin above the real working load. A key feature for this customer was independent suction cup control. Refrigerated truck panels are not flat everywhere; frames, ribs and reinforcement zones can prevent a suction cup from sealing correctly. With individual cup switching, the operator can turn off cups positioned over structural areas and keep the remaining cups sealed on clean, flat surfaces.The operator no longer has to fight the most dangerous step by hand: the 90° flip is handled by the machine with controlled electric movement.
Safety margin and pressure holding
Because the equipment handles panels up to 1,200 kg, safety was central to the design. The suction cup configuration uses a 4x safety factor, so the lifter works within a conservative load range during daily operation. The system also includes a pressure-holding function. If power is lost or a fault occurs during operation, the vacuum system can keep holding the panel for up to 30 minutes. This gives workers time to secure the load or lower it safely instead of facing a sudden drop.The result: one-operator panel flipping and faster assembly
After the WOLIFT lifter was put into service, the plant no longer needed a crew to manually stand up heavy panels. One operator can pick up, lift, tilt and position the panel with controlled equipment movement. The vacuum gripping method also reduced dents, scratches and broken panel edges caused by slings and hooks. With safer flipping and smoother positioning, refrigerated truck body assembly became faster, more predictable and less dependent on heavy manual labor.Case video
The video shows how the WOLIFT 90° electric tilting vacuum lifter picks up a large insulated panel, rotates it from horizontal to vertical and supports safer assembly positioning.RFQ questions for a similar panel lifting solution
After seeing this 90° tilting lifter case, panel manufacturers usually ask these practical questions before selecting a similar system.Can this lifter turn our panels from horizontal to vertical safely?
Yes, when the lifter is sized for the panel weight, dimensions and center of gravity. The electric tilting function controls the 90° flip so workers do not have to stand the panel up by hand.Will suction cups damage the visible panel surface?
Vacuum gripping avoids hooks and slings pressing into the edges. WOLIFT checks the panel skin, surface flatness and finish before selecting cup size and contact layout.What if some areas of the panel cannot seal because of ribs or reinforcements?
The lifter can be configured with independently controlled suction cups, allowing the operator to switch off cups that land on structural zones and use the cups that seal on flat areas.What happens if power is lost while a heavy panel is lifted?
The pressure-holding function keeps the vacuum from disappearing immediately. In this case, the system was designed to hold the panel for up to 30 minutes so the load can be secured or lowered safely.ENGINEERING SUPPORT
